Assembling Roof Assembly Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

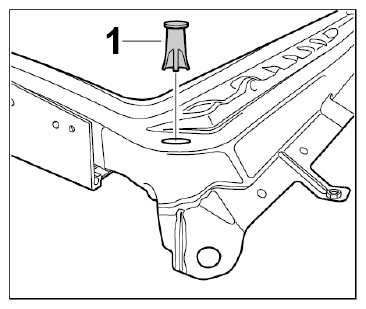

Press rubber grommet for water drain -1- at the front left and right into the roof assembly frame.

Fig 1: Fitting Water Drain Rubber Grommet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

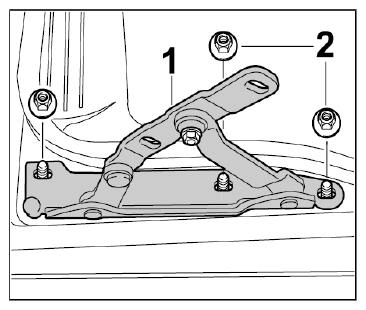

Position lid hinge -1- on the roof assembly frame and secure with fastening nuts -2- . → Tightening torque: 10 Nm (7.5 ftlb.)

Fig 2: Installing Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

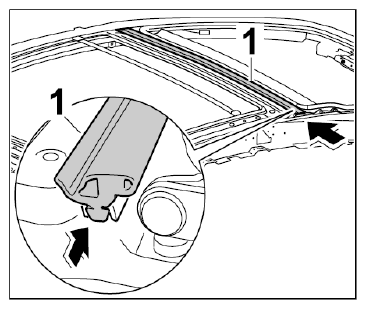

Fit seal for rear window cover -1- all the way around in -direction of arrow- on the roof assembly frame flange.

Fig 3: Installing Rear Window Cover Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

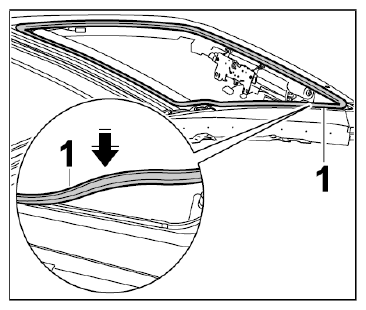

Pull seal for the center joint -1- into the roof assembly frame in -direction of arrow- . The seal for the center joint -1- must be flush on the left and right.

Fig 4: Installing Center Joint Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
