Removing Support For Side Trim Panel At The Left And Right

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove support for side trim panel.
    1. 1.1. Screw off fastening nuts -1-  on the side trim panel support -2-  .
    2. 1.2. Unclip side trim panel support -2-  at the retaining clips -Arrow A-  and lift it up to remove it -Arrow B-  .

      Information

      Left side only.

    3. 1.3. Turn plug connection for roof assembly -3-  (-Arrow C-  ) and remove it from the side trim panel support -Arrow D-  .

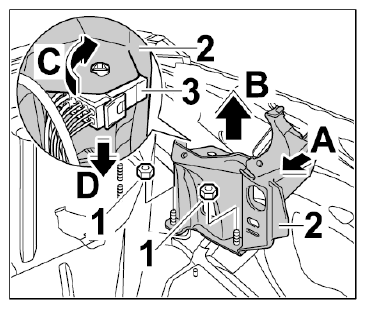

      Fig 1: Removing Side Trim Panel Support
      G09824410Courtesy of PORSCHE CARS NORTH AMERICA, INC.
