Removing Roof Assembly

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

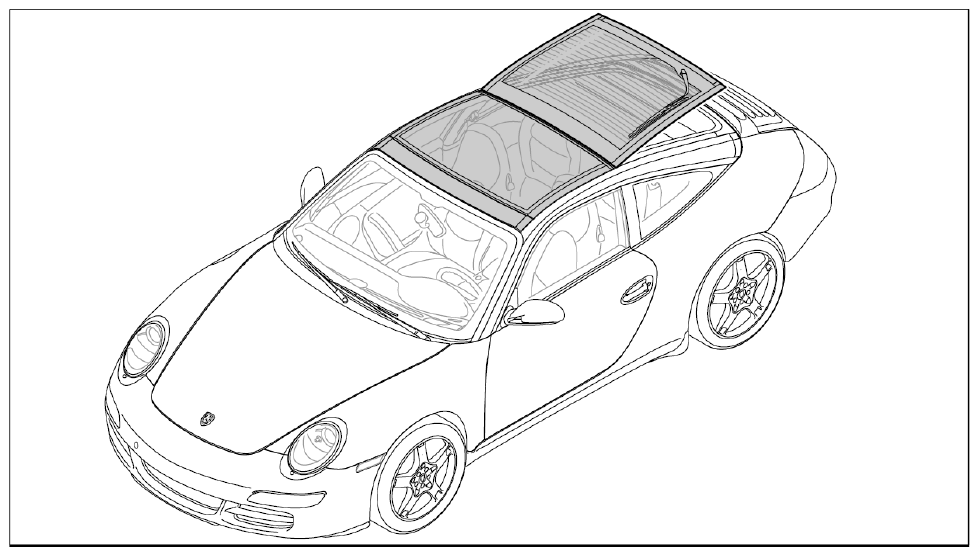

Fig 1: Identifying Roof Assembly Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

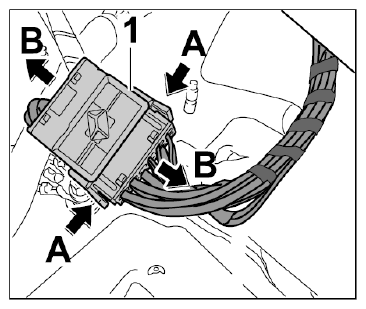

Release plug connection for roof assembly -1- (-arrows A- ) and disconnect it -arrows B- .

Fig 2: Disconnecting Roof Assembly Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

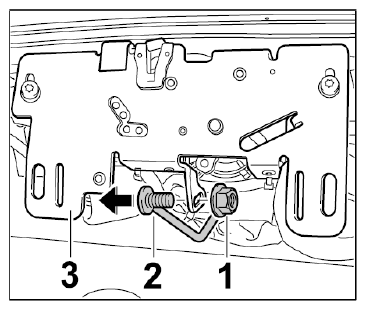

Loosen support on the closing aid.
1. 2.1. Unscrew fastening nut -1- on the support -2- .
2. 2.2. Detach support -2- from the closing aid -3- -arrow- .

  Fig 3: Loosening Support On Closing Aid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

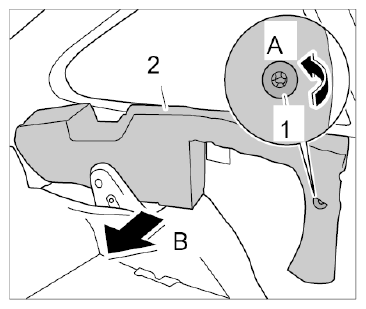

Remove sound absorber at the left and right.
1. 3.1. Unscrew fixing clip -1- (-arrow A- ) and remove sound absorber -2- (-arrow B- ).

  Fig 4: Removing Sound Absorber
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

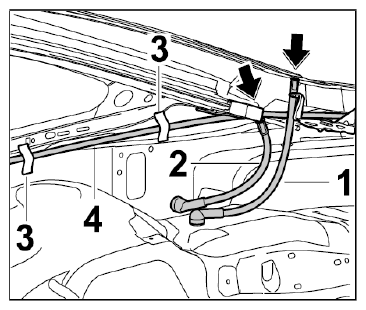

Remove rear water drains and drive outlet pipes on roof assembly.
1. 4.1. Pull rear water drain -1 and 2- at the left and right off the roof assembly -arrows- .
2. 4.2. Pull adhesive tape -3- off the drive outlet pipe -4- at the left and right.

  Fig 5: Removing Rear Water Drains And Drive Outlet Pipes On Roof Assembly
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull front water drain -1- at the left and right off the roof assembly -arrow- .

Fig 6: Removing Front Water Drains On Roof Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip contact plate for sun visor -1- at the left and right on the sun visor retaining bracket -arrow- .

Fig 7: Loosening Sun Visor Contact Plate At Left And Right On Roof Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect procedure
- Risk of damage to paintwork
→ Do not use tools with sharp edges.

→ Cover the area you are working on.

→ Do not use aggressive cleaning agents/solvents.

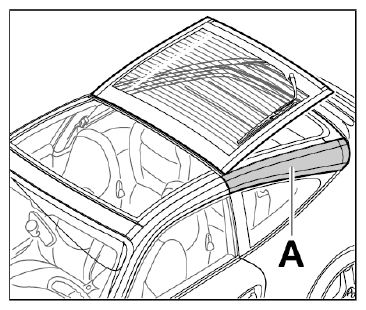

To protect the paint from damage, generously mask the rear left roof pillar -Bereich A- .

Fig 8: Masking Rear Left Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

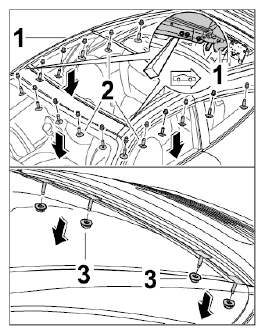

Loosen the roof assembly.
1. 8.1. Cover the switch panel.
2. 8.2. Move both seat backrests flat and back.
  NOTE:
  Unscrewing all fastening screws before loosening the roof assembly
  - Risk of damage to roof assembly
  → To secure the roof assembly, only loosen three fastening screws on the left and right side by up to two turns.
3. 8.3. Loosen three fastening screws -2- on the left and right side only by up to two turns and completely undo the remaining fastening screws -2- at the sides on the roof assembly -1- -arrow- .
4. 8.4. Undo front fastening screws -2- on the roof assembly -1- (-arrow- ).
5. 8.5. Undo rear fastening nuts -3- -arrow- .
6. 8.6. Loosen roof assembly -1- at the front left and right close to the water drain connections using a plastic wedge.
7. 8.7. Undo the three remaining fastening screws -2- on each side -arrow- .

  Fig 9: Loosening Roof Assembly
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Roof assembly moved in and out incorrectly
- Risk of damage to components in passenger compartment
→ Four people are required to move the roof assembly in and out.

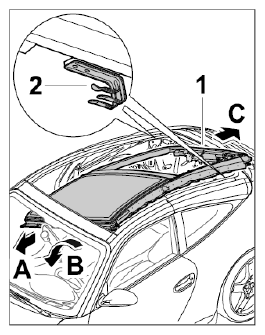

Move the roof assembly out.
1. 9.1. Press the roof assembly -1- inwards -arrow B- .
2. 9.2. Move the roof assembly -1- off the threaded bolts in the rear area and push it forward towards the windscreen -arrow A- .
  Information

  Make sure not to damage the metal clips -2- when moving the roof assembly out.
3. 9.3. Tip the front right of the roof assembly -1- diagonally downwards -arrow B- and move it backwards out of the vehicle -arrow C- .

  Fig 10: Moving Roof Assembly Out
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
