Preparing Roof Assembly And Vehicle For Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove sealing strip.
    1. 1.1. Pull sealing strip off the roof assembly.
    2. 1.2. Remove adhesive residue on the roof assembly using a film eraser Nr.174 Pos.1  and support Nr.174 Pos.2  .
    3. 1.3. Prime bonding areas to which the sealing strip will be affixed on the roof assembly with Primer 4297 from 3M  .

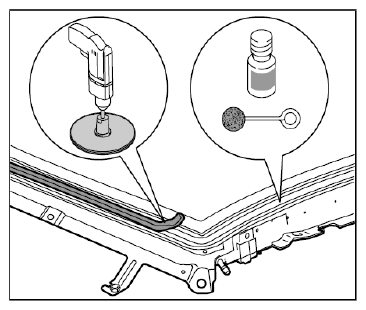

      Fig 1: Removing Sealing Strip
      G09824421Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clean the vehicle flanges.
    1. 2.1. Prime the vehicle flanges and rails, which come into contact with the sealing strip in the interior of the vehicle, with Primer 4297 from 3M  (-Arrows-  ).

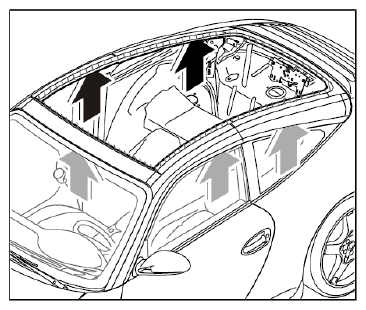

      Fig 2: Cleaning Vehicle Flanges
      G09824422Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Affix the sealing strip.
    1. 3.1. Starting at the centering pin at the front -Arrow -  , affix the sealing strip all the way around on the roof assembly -Arrow -  .

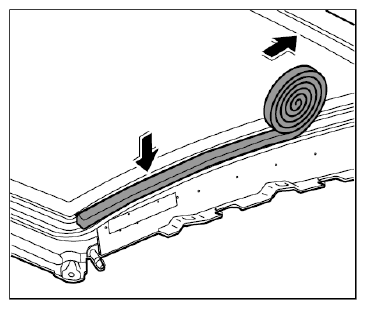

      Fig 3: Affixing Sealing Strip
      G09824423Courtesy of PORSCHE CARS NORTH AMERICA, INC.
