Installing Support For Side Trim Panel At The Left And Right

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install side trim panel support.
Information

Left side only.
1. 1.1. Insert plug connection for roof assembly -3- into the side trim panel support -2- from below -Arrow A- and turn it -Arrow B- .
2. 1.2. Insert side trim panel support -2- (-Arrow C- ) and clip it in using the retaining clip -Arrow D- .
3. 1.3. Tighten fastening nuts -1- . → Tightening torque: 5 Nm (3.5 ftlb.)

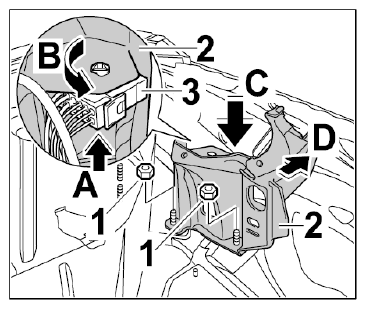

  Fig 1: Installing Side Trim Panel Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
