Installing Support For Rear Wall At The Left And Right

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The fastening nuts -2-  must generally be replaced following removal.

  1. Position support for rear wall -1-  on the threaded bolts -Arrow-  and secure with the fastening nuts -2-  . → Tightening torque: 2.5 Nm (2.0 ftlb.)

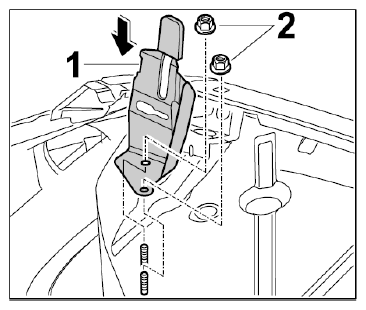

    Fig 1: Installing Rear Wall Support
    G09824433Courtesy of PORSCHE CARS NORTH AMERICA, INC.
