Installing Roof Assembly

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Roof assembly moved in and out incorrectly
  • Risk of damage to components in passenger compartment

→ Four people are required to move the roof assembly in and out.

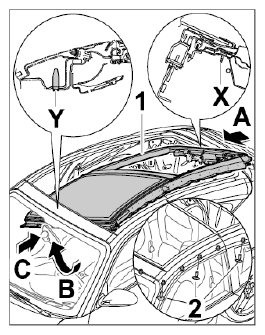

  1. Move the roof assembly in.
    1. 1.1. Tip the front right of the roof assembly -1-  diagonally downwards, guide it into the vehicle -Arrow A-  and then turn it horizontally -Arrow B-  .
    2. 1.2. Guide the roof assembly -1-  forwards towards the windscreen -Arrow C-  .
    3. 1.3. Pull protective film off the sealing strip.
    4. 1.4. Guide the roof assembly -1-  in over the threaded bolts -X-  in the rear area.
    5. 1.5. Guide the roof assembly -1-  into the windscreen frame using the centering pin -Y-  .
    6. 1.6. Secure the roof assembly -1-  in place with three fastening screws -2-  on each side.
      7. Fig 1: Moving Roof Assembly In
      G09824424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

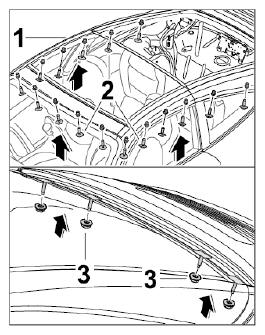

  2. Secure the roof assembly.
    1. 2.1. Secure the roof assembly -1-  with the fastening nuts -3-  (-Arrow-  ). → Tightening torque: 10 Nm (7.5 ftlb.)
    2. 2.2. Secure the roof assembly -1-  with the fastening screws -2-  (-Arrow-  ). → Tightening torque: 10 Nm (7.5 ftlb.)
      Fig 2: Securing Roof Assembly
      G09824425Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in contact plate for sun visor -1-  at the left and right on the sun visor retaining bracket -Arrow-  .
    Fig 3: Securing Sun Visor Contact Plate At Left And Right On Roof Assembly
    G09824426Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect front water drain -1-  at the left and right to the connections on the roof assembly -Arrow-  .
    Fig 4: Fitting Front Water Drains On Roof Assembly
    G09824427Courtesy of PORSCHE CARS NORTH AMERICA, INC.

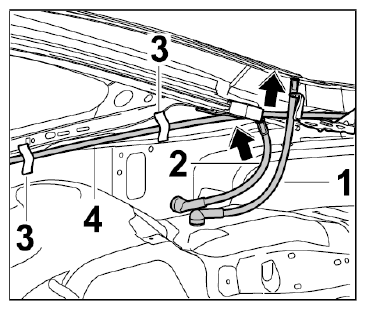

  5. Fit rear water drains and drive outlet pipes on the roof assembly.
    1. 5.1. Connect rear water drains -1 and 2-  at the left and right to the connections on the roof assembly -Arrows-  .
    2. 5.2. Secure drive outlet pipe -4-  at the left and right to the inner side panel with adhesive tape -3-  .
      Fig 5: Fitting Rear Water Drains And Drive Outlet Pipes On Roof Assembly
      G09824428Courtesy of PORSCHE CARS NORTH AMERICA, INC.

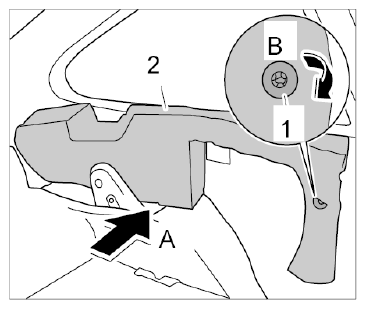

  6. Install sound absorber at the left and right.
    1. 6.1. Position sound absorber -2-  on the side wall -Arrow A-  and screw in fixing clip -1-  (-Arrow B-  ).
      Fig 6: Installing Sound Absorber
      G09824429Courtesy of PORSCHE CARS NORTH AMERICA, INC.

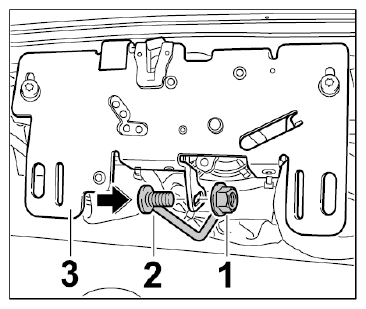

  7. Secure support on the closing aid.

    Information

    Make sure that the support on the closing aid runs between the two wire harnesses.

    1. 7.1. Engage support -2-  on the closing aid -3-  (-Arrow-  ).
    2. 7.2. Tighten fastening nuts -1-  .
      Fig 7: Securing Support On Closing Aid
      G09824430Courtesy of PORSCHE CARS NORTH AMERICA, INC.

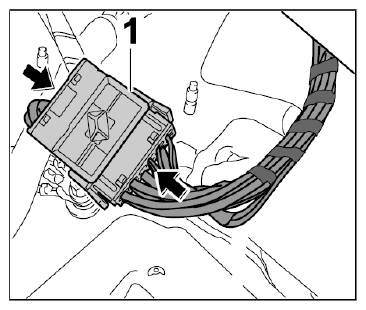

  8. Connect plug connection for roof assembly -1-  (-Arrows-  ) until the plug connection -1-  engages securely.
    Fig 8: Connecting Roof Assembly Plug Connection
    G09824431Courtesy of PORSCHE CARS NORTH AMERICA, INC.
