Installing Antenna Amplifier

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the antenna amplifier on the A-pillar and screw down the fastening screws -6-  .
  2. Plug in the connectors for the antenna control unit -3, 4-  on the left-hand side and -3, 4, 5-  on the right-hand side.
  3. Plug in the antenna connectors for the windscreen -1-  and -2-  .

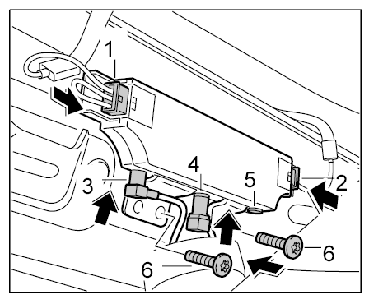

    4. Fig 1: Installing Antenna Amplifier Plug Connector And Fastening Screws
    G09830617Courtesy of PORSCHE CARS NORTH AMERICA, INC.
