Removing Oil Separator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Loosen the fastening screw -1- on the cable duct -2- .

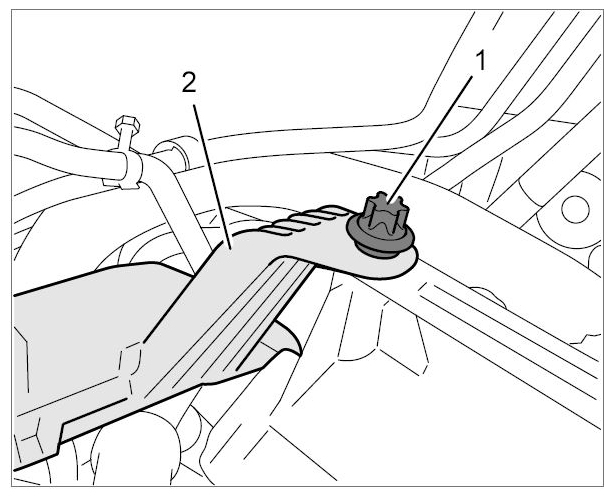

Fig 1: Identifying Cable Duct Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unscrew one external Torx screw (E10) -1- on the intake-air distributor for cylinder bank 4-6.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Disconnect coolant lines -1- for the turbocharger (cylinder 4-6) above the oil separator.

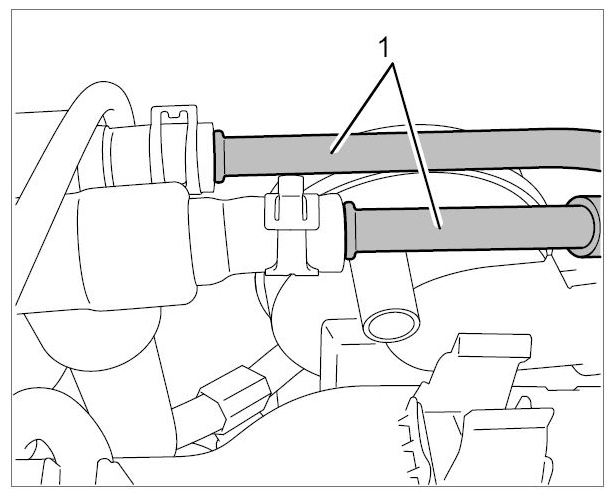

Fig 2: Identifying Turbocharger Coolant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Place a cloth under the coolant hoses.
2. 2.2. Loosen two spring band clamps and pull off hoses.
3. 2.3. Soak up drops of coolant with a cloth.
Unclip electric line for starter at the oil separator.
Remove oil separator.
1. 4.1. Release and pull off the engine vent line -1- at the oil separator by pressing the locking ring.
2. 4.2. Unscrew two external Torx screws (E10, M6 x 20) -2- .
3. 4.3. Pull oil separator -3- off the bracket for the oil/water heat exchanger.
4. 4.4. Close off the bores using suitable stoppers.

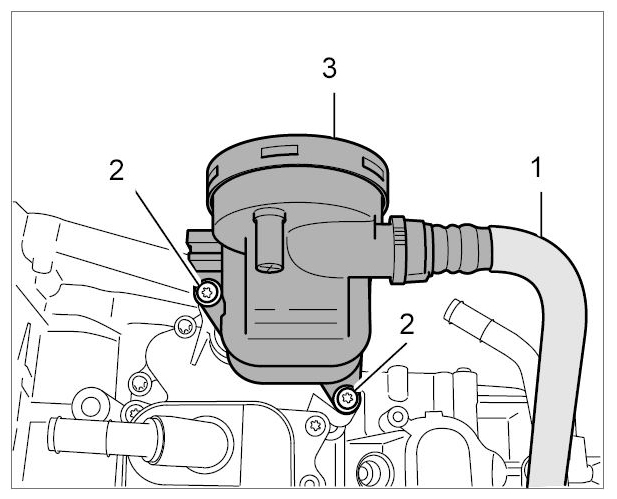

  Fig 3: Identifying Oil Separator
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
