Installing Rear Side Trim Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

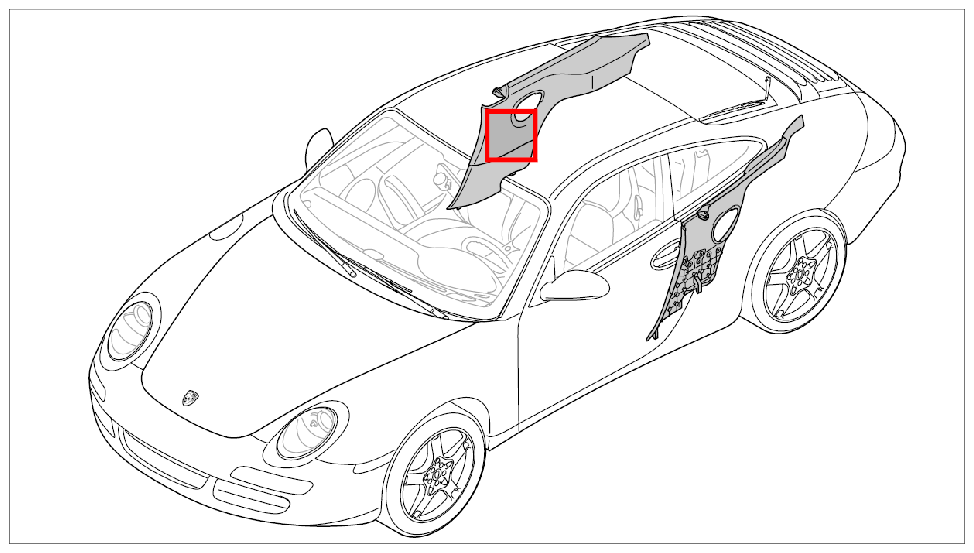

Fig 1: Identifying Rear Side Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

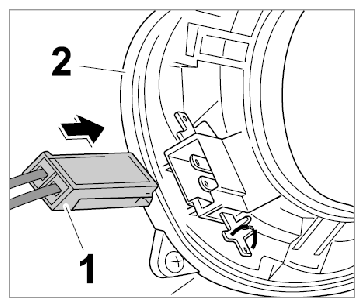

Plug in the electric plug connection -1- on the loudspeaker -2- .

Fig 2: Plugging In Loudspeaker
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position side trim panel -3- on the inside of the rear side section and the inside of the lower side member and press the locking tabs into the clamps.

Fig 3: Installing Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

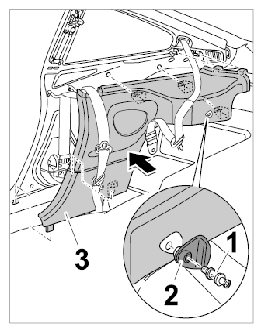

Position stop -2- and screw down locking pins -1- . Tightening torque → Tightening torque: 37 ft. lb. +1.5 ft. lb.
Check plug-in nut -3- and replace if necessary. Position and tighten fastening screw -2- in the side-panel trim -2- .

Fig 4: Securing Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position locking tabs of collar of opening for belt -1- on side trim panel and press them in.

Fig 5: Installing Collar Of Opening For Belt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

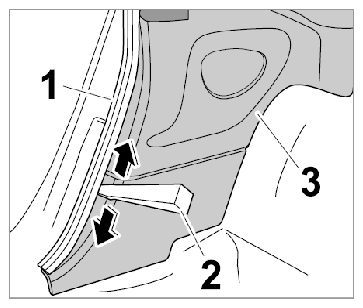

Lift up the pillar seal -1- using a plastic spatula -2- along the side trim panel -3- .

Fig 6: Aligning Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold up rear backrest and lock it.
