Subsequent work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install pressure pipe -4- and air cleaner housing -3- . The instructions for installing the air cleaner housing -3- also covers installing the pressure pipe -4- . → WM 242519 Removing and installing air cleaner housing .

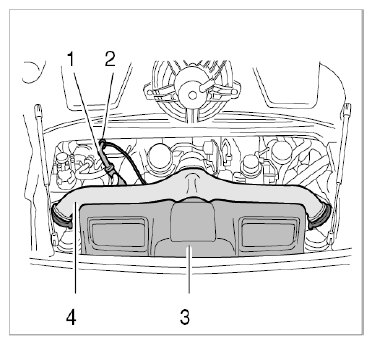

Fig 1: Identifying Air Cleaner Housing And Pressure Pipe
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Check vacuum using tester 9160/1.
1. 2.1. Tester 9160/1 (pressure gauge) must be connected. To do this, pull the adapter -2b- (or hose piece if an adapter -2b- is not used) together with the thin vacuum line out of the branch piece -2- of the vacuum line -1- .

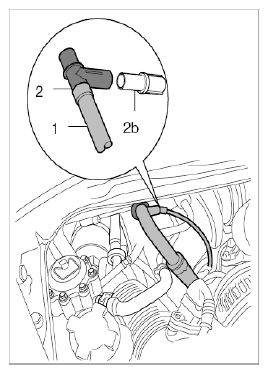

  Fig 2: Checking Vacuum
  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
2. 2.2. Tester 9160/1 must be connected (plugged in) to the branch piece -2- .
3. 2.3. Start the engine and allow it to idle (engine speed is 650... 750 rpm/ambient temperature is 20°... 25° C). After a waiting time of approx. 10 seconds, read off the existing vacuum on the pressure gauge. Minimum value: 650 mbar.
4. 2.4. Then remove the tester 9160/1 and re-connect the adapter -2b- (or hose piece, if no adapter -2b- is used) to the branch piece -2- .
