Removing vacuum line
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

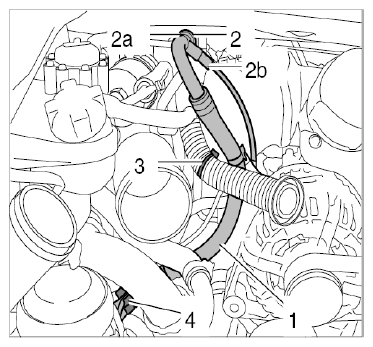

- Pull adapter -2b-
- or hose piece if an adapter -2b-
is not used - together with the thin vacuum line out of the branch piece of the vacuum line -1-
.
Disconnect vacuum line -1- from the vacuum line on the vehicle side in area -2- at the plug-in coupling. To do this, remove the retainer -2a- and pull the vacuum line out of the plug-in coupling while releasing it at the same time.
- Release vacuum line -1- from combination holder -3- (open combination holder -3- ).
- Unclip lines from the retaining clip -4- .

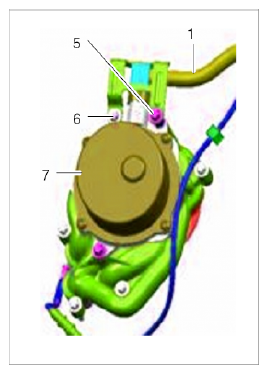

- Remove vacuum line -1-
at the tandem pump -7-
. To do this, loosen the two Torx screws -5 and 6-
(Torx E10) -from the underside when the vehicle is raised-

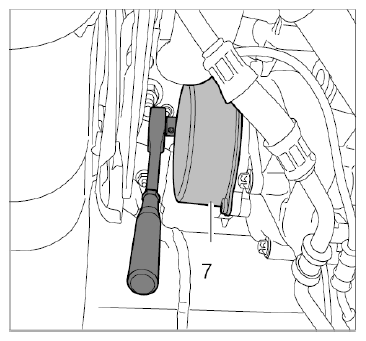

. Counter at the hexagon on the combination screw behind it (behind the holder) when loosening the Torx screw -5-
. You only need to counter if a combination screw is fitted under the holder (introduced only in the current model series).
Press vacuum line -1- out of the tandem pump -7- .
- Lower the lifting platform and remove vacuum line (take it out of the engine compartment). Important: Before removing the vacuum line, take note of the installation position between the various hoses and lines for subsequent installation!
