WM 477755 Replacing Vacuum Line For Brake Booster (Section At Engine) (Turbo Coupe, Turbo CABRIO): Information
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

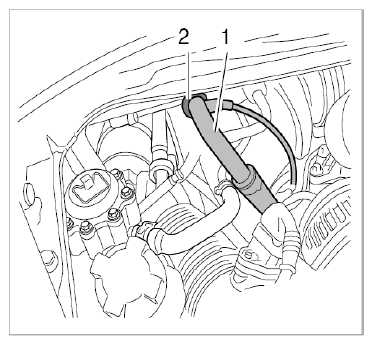

Removal and installation instructions relate to the vacuum line (vacuum hose/vacuum line assembly) -1- in the engine compartment.
The vacuum line (vacuum hose/vacuum line assembly) -1- is secured on one side at the tandem pump of the left camshaft (with two M6 Torx screws) and is fitted on the other side at the connection point (plug-in coupling) -2- for the brake-booster vacuum line on the vehicle side.
