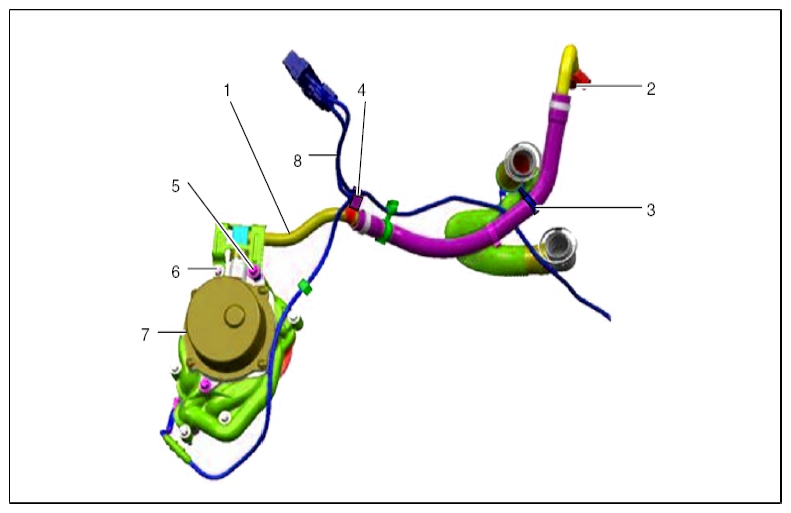

Component overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- 1 - Vacuum line for brake booster
- 2 - Connection point for vacuum line on vehicle side (plug-in coupling)
- 3 - Combination holder
- 4 - Cable holder
- 5+6 - Micro-encapsulated Torx screws. 5 = M6 x 10/6 = M6 x 16. Always replace after loosening.
- 7 - Tandem pump at the left exhaust camshaft
- 8 - Exhaust sensor line
