Removing vacuum pump - as of 2009 model

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

When you loosen the fastening screws, engine oil will run out of the vacuum pump. Place a suitable container underneath to collect the emerging engine oil. The engine-oil level must be checked and topped up afterwards (following installation).

Remove vacuum pump -1- (solo pump on right side of cylinder head).
- 1.1. Disconnect vacuum pipe -2- at the vacuum pump -1- and on the engine.
  Pull off vacuum pipe -2- at the vacuum pump -1- .

  Fig 1: Identifying Solo Pump On Right Side Of Cylinder Head - As Of 2009 Model
  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- 1.2. Unscrew external Torx screws (M6 x 20) -4- and remove the vacuum pump.
  Make sure not to loosen the internal Torx screws.

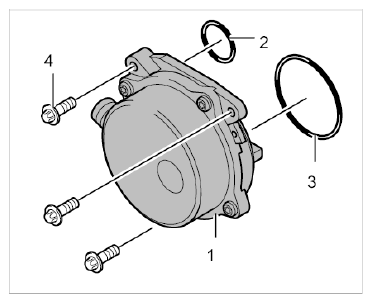

  Fig 2: Identifying Vacuum Pump And Screws
  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
