Installing vacuum pump - as of 2009 model

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clean contact surfaces.
Clean contact surfaces on the vacuum pump and cylinder head.
Install vacuum pump -1-.
- 2.1. Replace sealing rings -2 and 3-.
  Grease sealing rings -2, 3- with "Kluber Syntheso Glep 1" (Porsche Part No. 000.043.204.68) before fitting them.

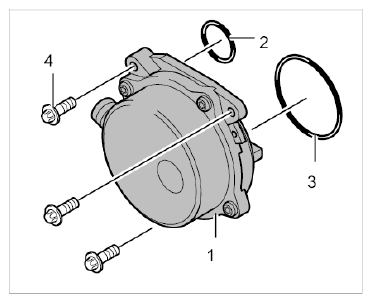

  Fig 1: Identifying Vacuum Pump And Screws
  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- 2.2. Align vacuum pump driver.
- 2.3. Fit vacuum pump -1- and screw in and tighten external Torx screws (M6 x 20) -4-. Tightening torque: 9 Nm (6.5 ftlb.).
Install vacuum pipe -2-.

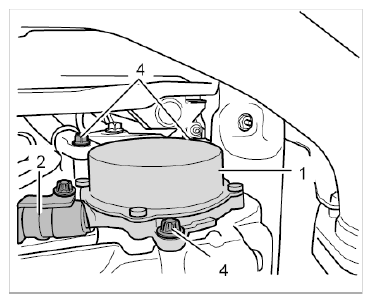

Fig 2: Identifying Solo Pump On Right Side Of Cylinder Head - As Of 2009 Model
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- 3.1. Fit vacuum pipe -2- and screw in and tighten M6 screws (on pump and engine). Tightening torque: 10 Nm (7.5 ftlb.).
