WM 477019 Removing And Installing Brake Booster(All Models): Information
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

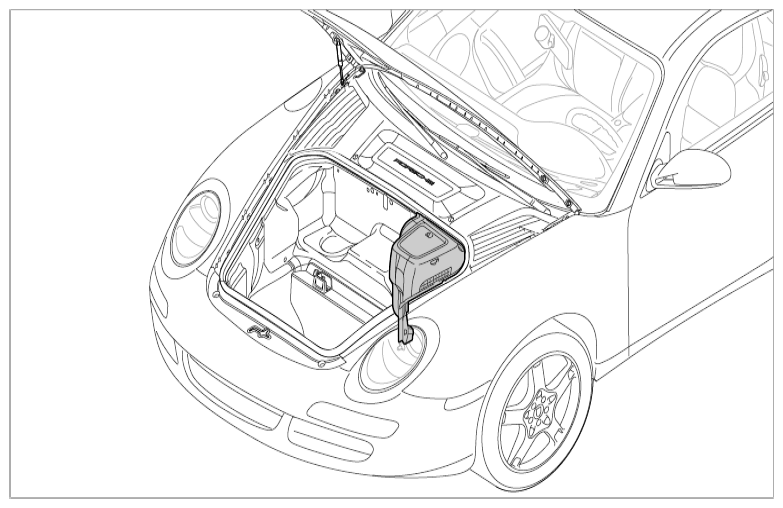

The brake components (brake booster, brake master cylinder, hydraulic unit) are installed under the -luggage compartment cover- .

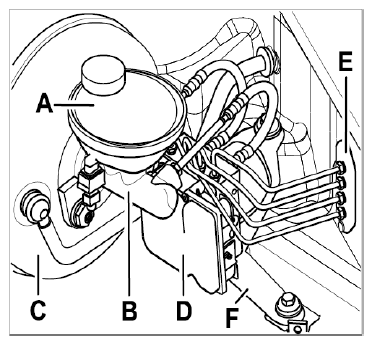

To remove and install the brake booster -C- , the hydraulic unit -D- must be removed.
The brake master cylinder -B- must not be separated from the brake booster -C- if both parts -B and C- are to be re-used.
