Installing rear brake calliper (standard brake system and PCCB)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit brake calliper on wheel carrier. Use new fastening screws -3-  . Tightening torque: 85 Nm (63 ftlb.).

    Fit brake line -1-  and holder (M6 screw) -2-  on brake calliper.

    Tightening torques: Brake line -1-  = 12-14 Nm (9-10.5 ftlb.)/holder (M6 screw) -2-  = 10 Nm (7.5 ftlb.).

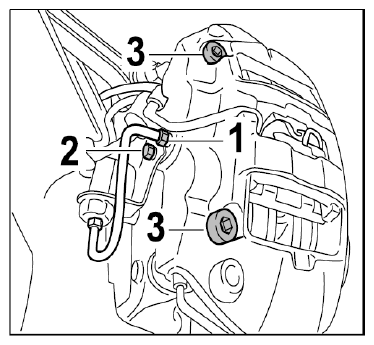

    Fig 1: Identifying Brake Calliper/Brake Line
    G09826274Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  2. Route brake pad wear indicator wire (clip it into the holders) and connect the connector to the combination plug connection. Lock combination plug connection.
  3. Bleed the brake system and adjust the brake-fluid level → 470107 BLEEDING THE BRAKE SYSTEM .
