Installing brake master cylinder
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

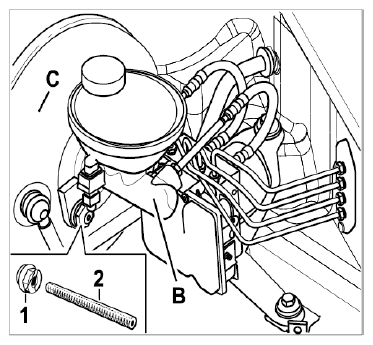

- Install in reverse order. Tighten fastening nuts -1-
on the brake master cylinder to the prescribed tightening torque. → WM 4700TW TIGHTENING TORQUES FOR BRAKE HYDRAULICS (ALL MODELS) .
- Brake master cylinder mount
- Brake booster mount
- Bleed the brake system and adjust the brake-fluid level. → 470107 BLEEDING THE BRAKE SYSTEM .
- Carry out the following tests:
- Check the system for leaks.
- Then start the engine. Brake-related lights in the instrument cluster must go out when the engine is running.
- Carry out a function test on the brakes.
