Checking brake fluid level
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Observe brake fluid quality. Use only new DOT 4 brake fluid.
- This brake fluid is available under the following part numbers: Container quantity: 1 litre = 000.043.203.66. 30 litres = 000.043.203.67.
The brake fluid level in the reservoir must be between the MIN and MAX markings.

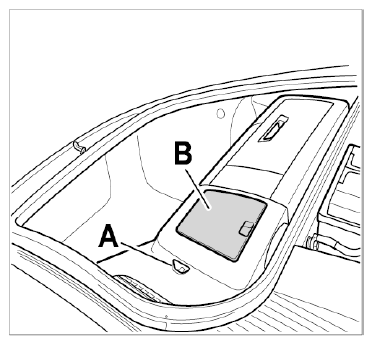

- Disengage and remove cover over brake fluid reservoir -B- . Check brake fluid level.
- -A- - Viewing window for brake fluid level (MIN marking only)
- -B- - Cover
