Knee Airbag On Driver's Side
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Upper threaded joint securing driver's knee airbag to trim panel | Torx screw -1- | Tightening torque | 3.2 Nm (2.5 ftlb.) |
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Driver's knee airbag to trim panel | Torx screw -1- | Tightening torque | 1.4 Nm (1 ftlb.) |

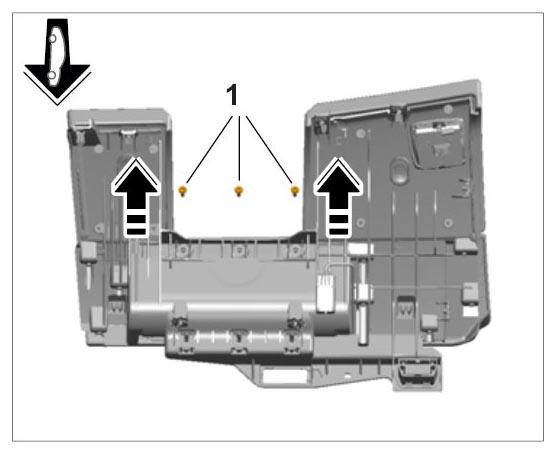

.1
Unscrewing airbag from trim panel
