Cutting Force For Removing Glass With Cutting Thread

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The force required for separating the glass is lower when the cutting thread is deflected to its maximum point. An angle greater than 90° should be avoided.

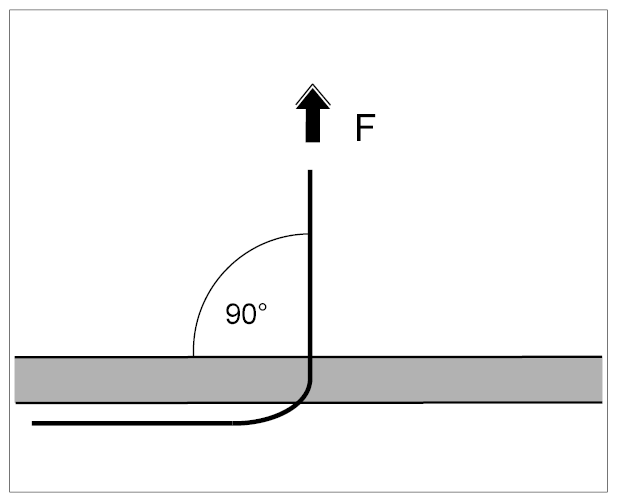

Unfavourable angle (strong pulling force required)

Fig 1: Identifying High Cutting Force

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

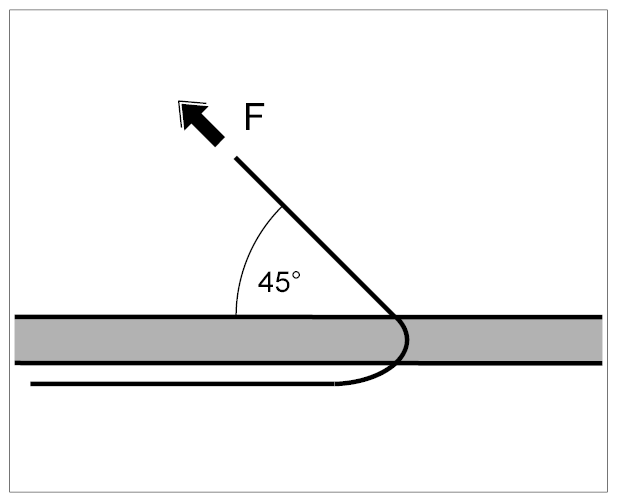

Favorable angle (average pulling force required)

Fig 2: Identifying Average Cutting Force

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

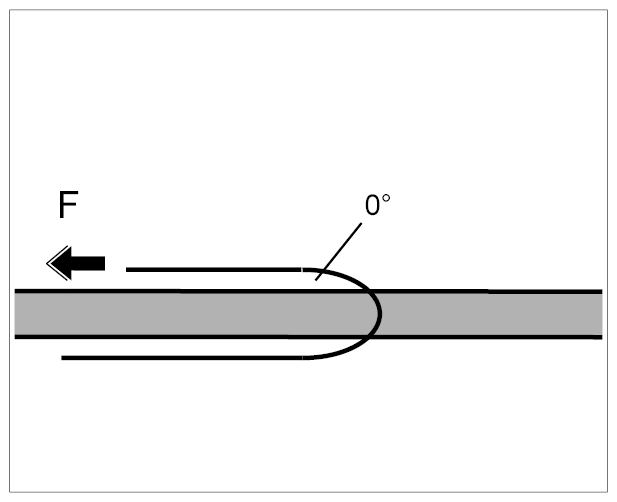

Optimum angle (minimum pulling force required)

Fig 3: Identifying Low Cutting Force

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
