Installing Oil Spray Jets

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The type of oil spray jets used depends on the engine number. Always check the engine number when ordering new oil spray jets.
For specific allocations, always check the Porsche Spare Parts Catalogue.
Adapted software must be installed on the control unit if necessary due to modified oil pressures.

Insert oil spray jets into the upper part of the crankcase with new sealing rings and screw them on.
To do this, grease sealing ring with Kluber Syntheso GLEP 1 and fit it. Check that oil spray jets are pointing in the correct direction of spray toward the inside of the piston crown. The oil spray jet must be aimed at the piston crown. → Spray direction → Spray direction at the side Tightening torque 13 Nm (9.5 ftlb.)

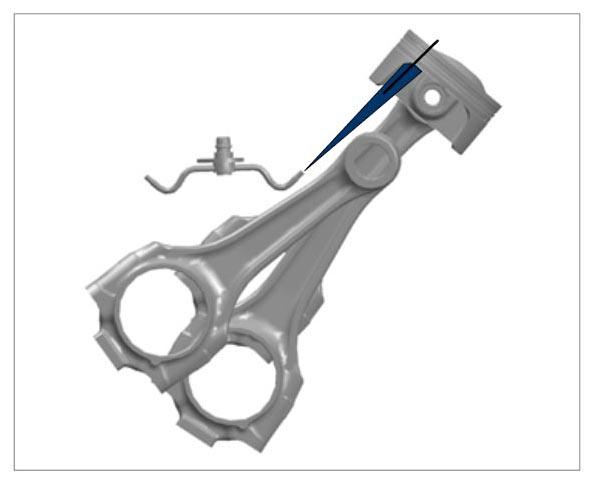

Fig 1: Identifying Correct Direction For Pointing Oil Spray Jets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

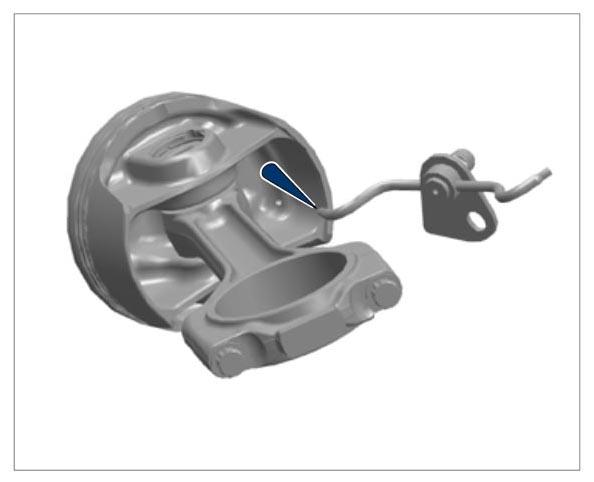

Fig 2: Identifying Correct Direction For Pointing Oil Spray Jets (Spray Direction From Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
