Removing ATF Pan

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Make sure to use steel screws when fitting the ATF pan.

Place a drip pan underneath.
Open the oil drain plug and drain oil.

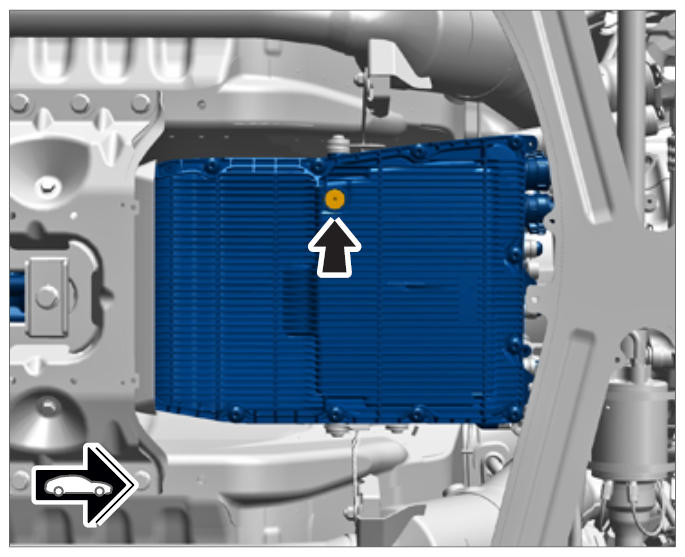

Fig 1: Locating Oil Drain Plug For PDK
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove heat protection on the transmission.

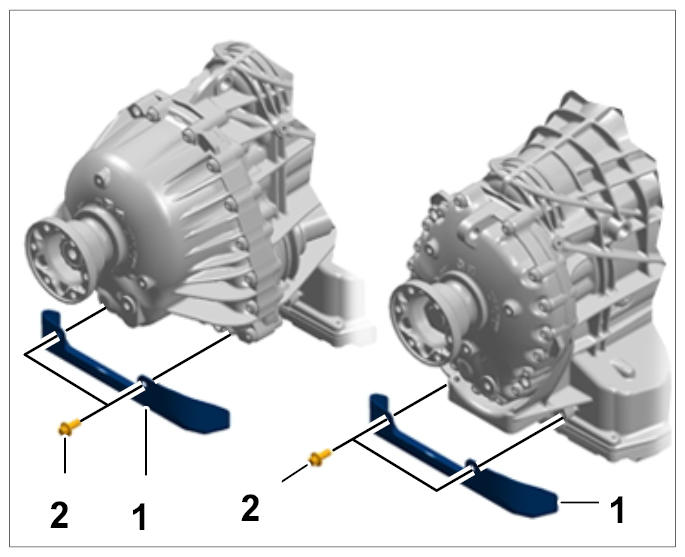

Fig 2: Heat Protection Panel For PDK Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove heat shield on the transmission.

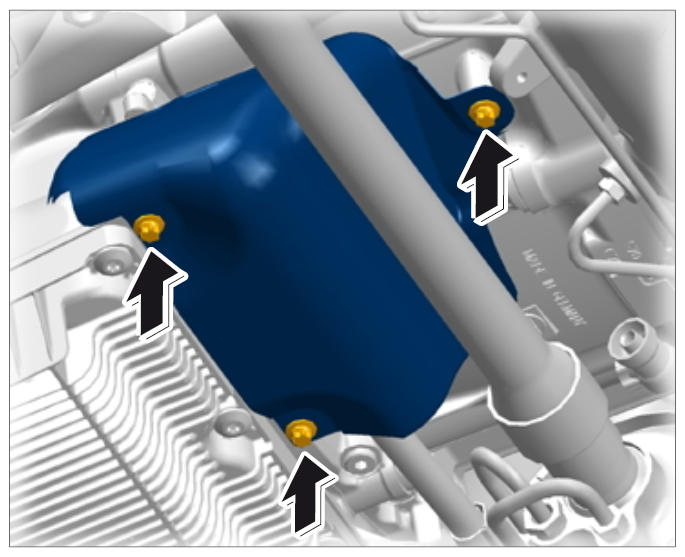

Fig 3: Identifying Heat Shield On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws securing ATF pan to transmission in Sequence.

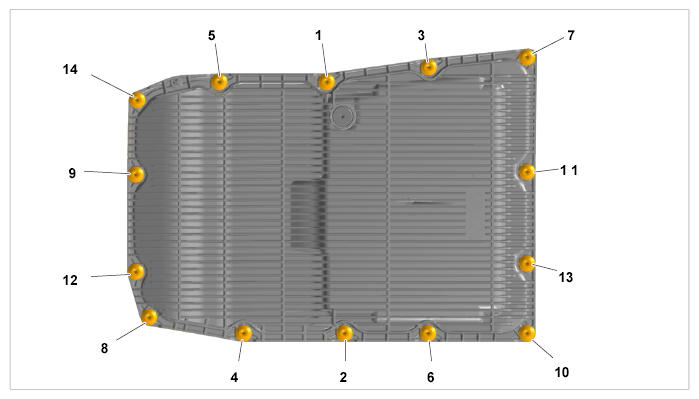

Fig 4: Identifying Screws For ATF Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove ATF pan.
