Installing ATF Pan

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure to use steel screws when fitting the ATF pan.

Clean the sealing face on the transmission.
Information

To ensure that the ATF pan will not leak, it must always be replaced following removal.
Install a new ATF pan and tighten fastening screws hand-tight.

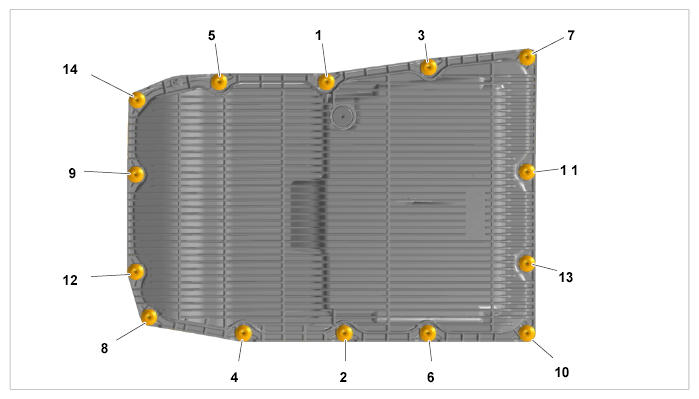

Tighten fastening screws in the specified sequence. Tightening torque 10 Nm (7.5 ftlb.) +/-1 Nm (+/- 0.5 ftlb.)

Fig 1: Identifying Screws For ATF Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

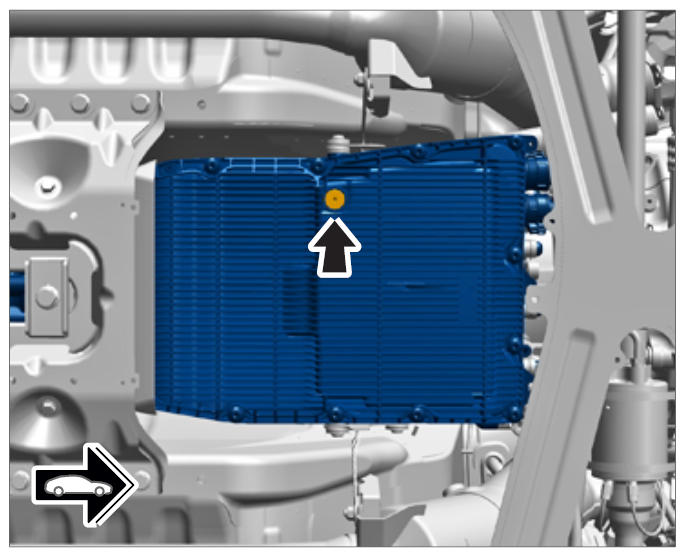

Screw in and tighten oil drain plug -arrow- on the new ATF pan. Tightening torque 15 Nm (11 ftlb.) 3 Nm (2 ftlb.)

Fig 2: Locating Oil Drain Plug For PDK
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

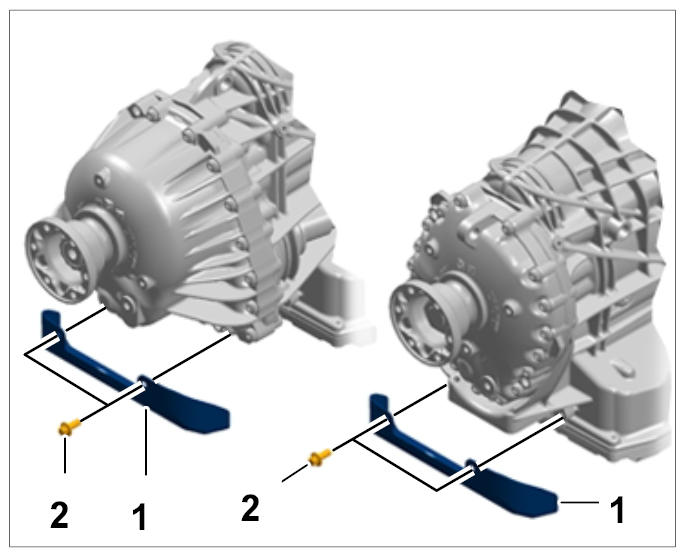

Fit heat shield on the transmission. Tightening torque 23 Nm (17 ftlb.)

Fig 3: Identifying Heat Shield On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

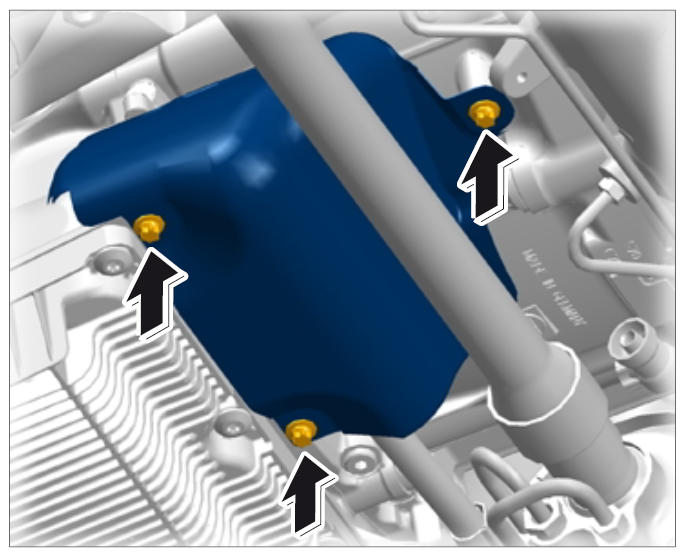

Fit heat protection on the transmission.

Fig 4: Locating Heat Protection Panel For PDK Wiring Harness And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
