Removing ATF Pan

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew oil drain plug -A-  .
  2. Unscrew overflow pipe -C-  .
  3. Drain ATF.

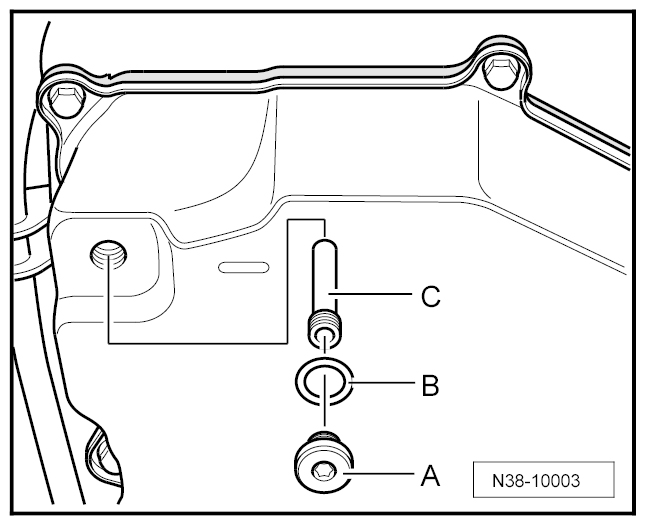

    Fig 1: Identifying Overflow Pipe On ATF Pan
    G09806953Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew screws on the ATF pan in diagonally opposite sequence and remove ATF pan -2-  .

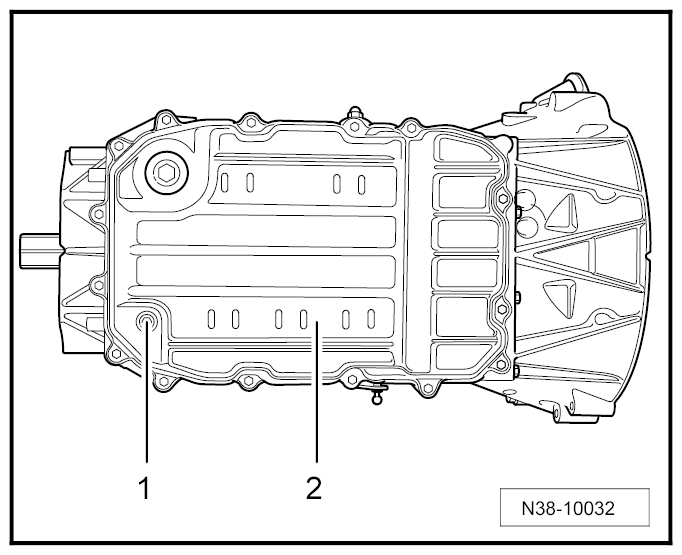

    Fig 2: Identifying Mounting Point For ATF Pan
    G09806954Courtesy of PORSCHE CARS NORTH AMERICA, INC.
