Mounting Transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening torque, tightening sequence and assembly overview. → 3X00IN TIGHTENING TORQUE, TIGHTENING SEQUENCE AND ASSEMBLY OVERVIEW

Information

Unscrew two screws securing the transmission to the drive motor at the same time as the catalytic converter holders at the left and right.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Installation is performed in reverse order. Check the following during installation.
1. 1.1. Clean the ATF lines if the ATF is dirty or before installing a replacement transmission.
2. 1.2. Clean the thread of screws secured with securing liquid using a wire brush. Then screw in screws using securing liquid.
3. 1.3. Remove securing liquid residue from all threaded bores in which self-locking screws are used using a tap. Otherwise, there is a danger that the screws will break off when you try to unscrew them again.
Always replace self-locking screws and nuts.
Reconnect all electric connections, lines, hoses and plug connections.
NOTE:
Torque converter installed incorrectly
- Risk of damage to transmission and torque converter
→ Always observe installation dimension

→ When securing the transmission, check that the torque converter can turn freely and is not jammed.

→ Do not use force when screwing the engine and transmission together
Before installing the transmission, make sure that the torque converter is inserted correctly in the transmission.

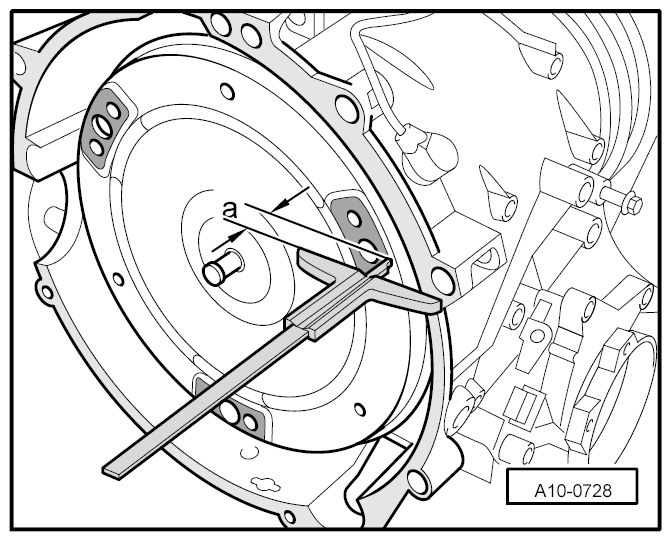

The installation dimension -a- is → Control value: 18.9 mm .

Fig 1: Installation Dimension For Torque Converter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

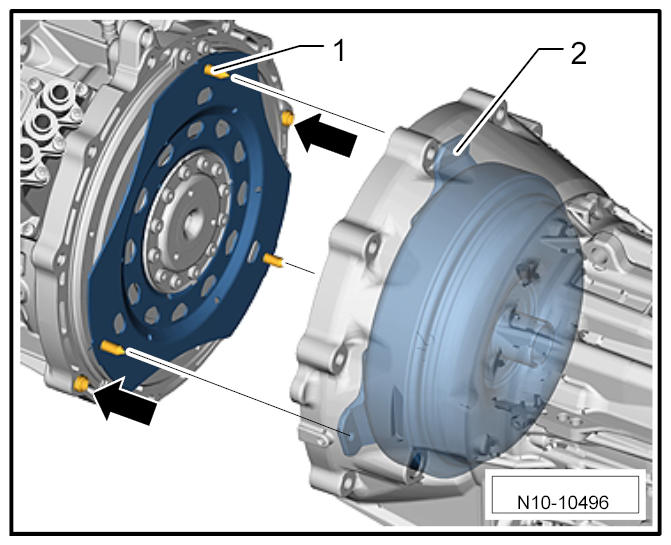

Before installing the transmission, check that the dowel sleeves -arrows- are fitted. The dowel sleeves must be fitted.
NOTE:
Torque converter installed incorrectly
- Risk of damage to transmission and torque converter
→ Always observe installation dimension

→ When securing the transmission, check that the torque converter can turn freely and is not jammed.

→ Do not use force when screwing the engine and transmission together

When joining the drive motor and transmission, make sure that the studs on the drive plate are flush with the converter bores.

Fig 2: Securing Dowel Sleeves On Electric Drive Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

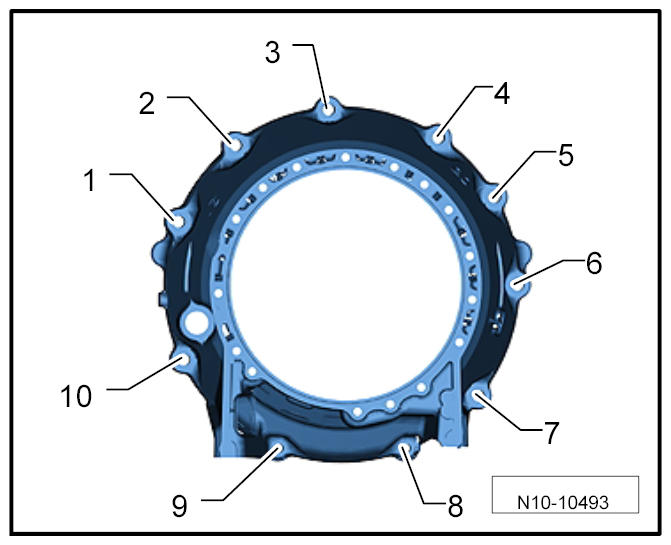

Tighten screws -1... 10- on connection between transmission and electric drive motor and fit catalytic converter holders.→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS
Screw on the catalytic converter holders using screws -1, 2, 4 and 5- .

Fig 3: Securing Bolts On Electric Drive Motor To Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

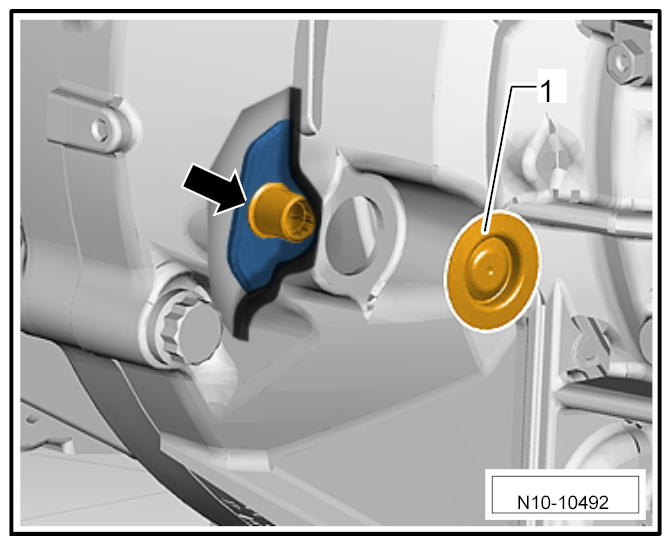

Tighten three fastening nuts -arrow- for the torque converter through the opening on the transmission. Turn the crankshaft a further 120° to do this. Fit the cover -1- .

Fig 4: Locating Fastening Nuts For Torque Converter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
