Fitting Porsche Doppelkupplung (PDK)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Coat shaft teeth on the PDK with Longtime 3EP .

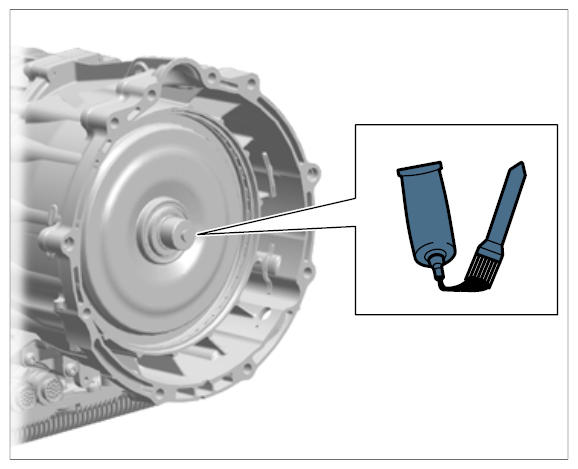

Fig 1: Identifying Greasing Area On Shaft Teeth
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach transmission using workshop crane and suspending device 3033 .
Refit transmission to engine and screw in new fastening screws -1- . Initial tightening 38 Nm (28 ftlb.) Torque angle 90°

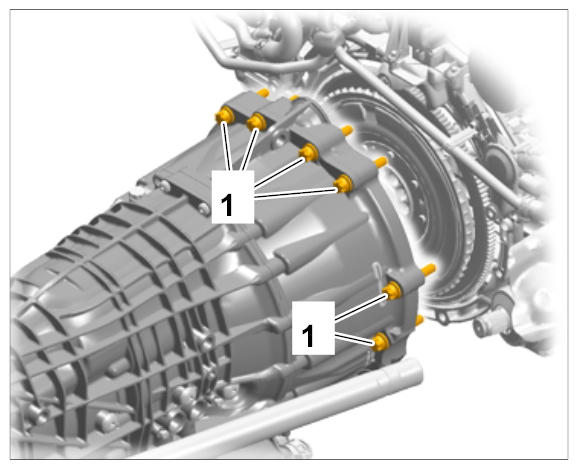

Fig 2: Identifying Transmission To Engine And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install catalytic converter on the left and right. → INSTALLING PRIMARY CATALYTIC CONVERTER
Together with all-wheel drive:
- Replace circlip on input flange of all-wheel final drive.
- Coating input flange -arrow- on all-wheel final drive lightly with Anti Seize
- Fit impact puller 9799 to the groove in the connecting shaft using 4 screws.
- Attach connecting shaft on all-wheel final drive and fit using impact puller 9799 (-arrow- ) until ring → Removing and fitting connecting shaft on transmission is visible.
- Then remove the impact puller 9799 from the connecting shaft.

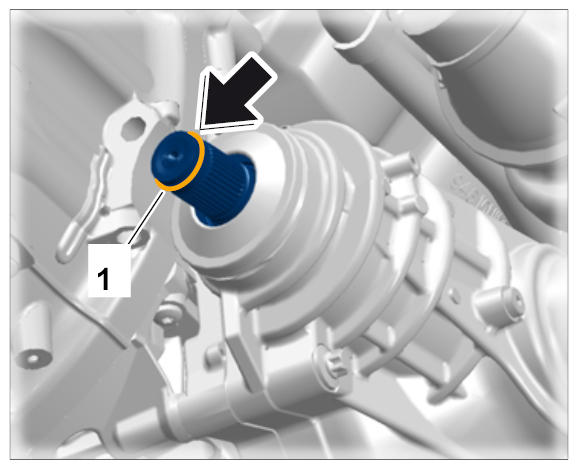

  Fig 3: Locating Circlip On All-Wheel Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

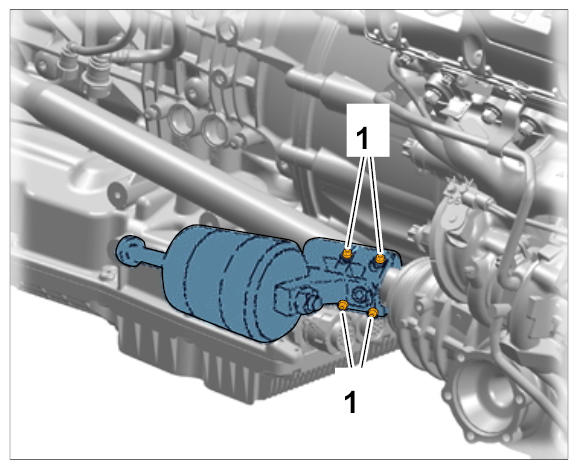

  Fig 4: Identifying Fitting Tool And Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

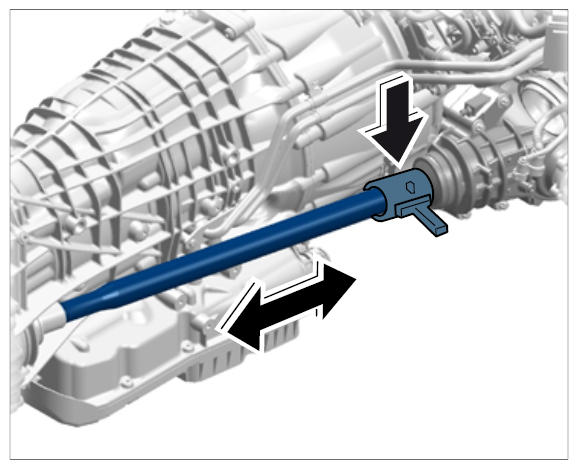

  Fig 5: Removing And Fitting Connecting Shaft
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
