Removing Porsche Doppelkupplung (PDK)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support transmission with a transmission jack.
  2. Remove heat protection on the transmission.

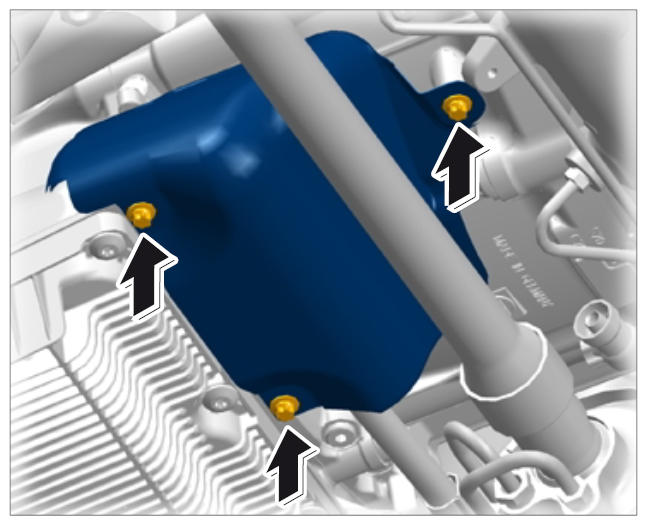

    Fig 1: Identifying Heat Shield For PDK Wiring Harness And Screw
    G09806881Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Disconnect connector on the transmission by turning it 1/4 turn to the left.

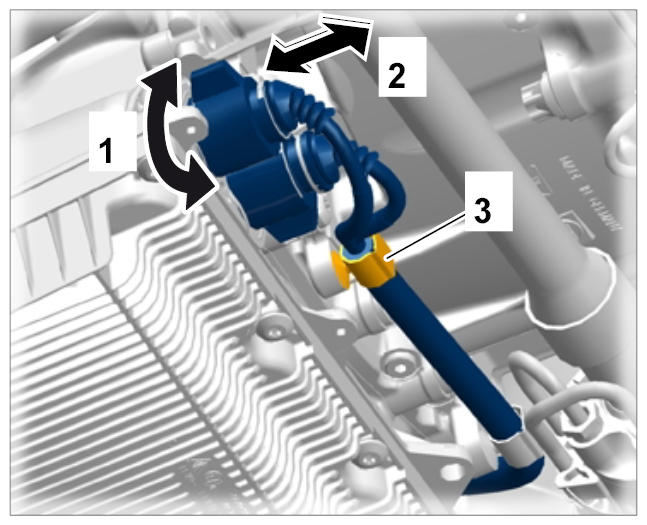

    Fig 2: Disconnecting Connector On Transmission
    G09806882Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Together with all-wheel drive: Fit the impact puller 9799  using 4 screws -1-  to the groove in the connecting shaft.

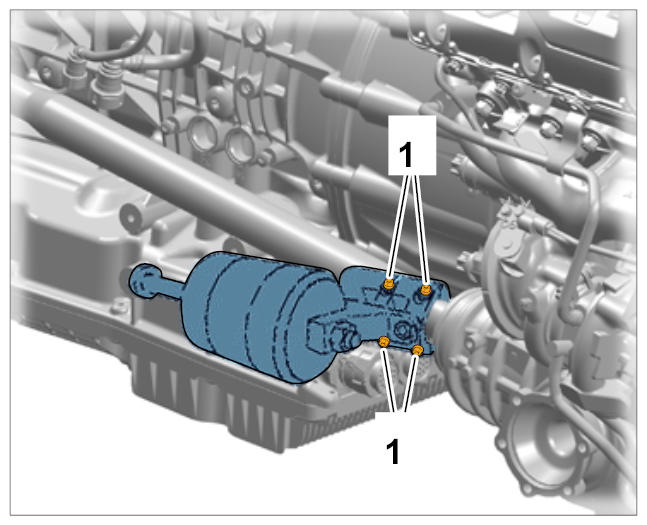

    Fig 3: Identifying Fitting Tool And Screw
    G09806883Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Together with all-wheel drive: Remove connecting shaft from the all-wheel final drive using impact puller 9799  . This pushes the connecting shaft into the PDK transmission.

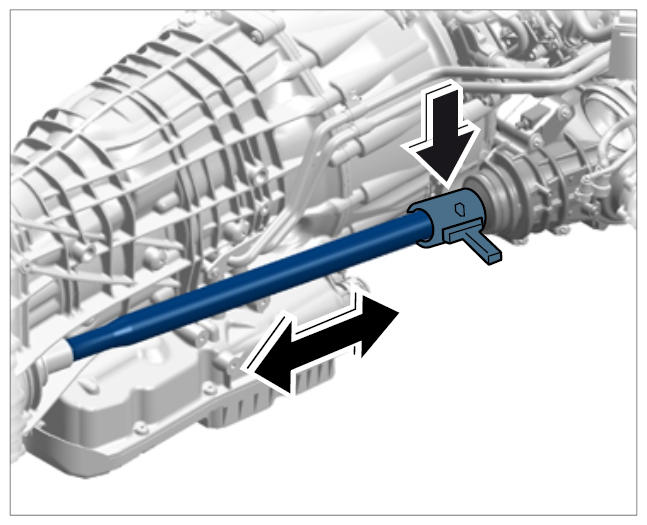

    Fig 4: Removing And Fitting Connecting Shaft
    G09806884Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Place a drip pan underneath.
    WARNING: Hot fluid
    • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  7. Disconnect ATF line on the transmission.

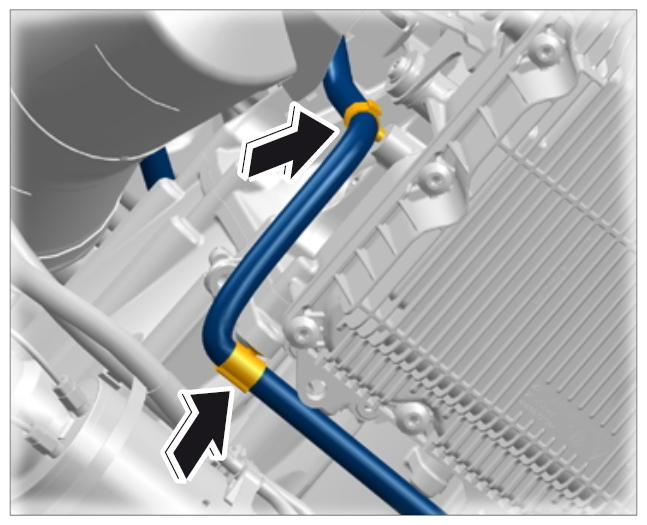

    Fig 5: Locating Retaining Clips On PDK Wiring Harness
    G09806885Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Press locking cable off the gear lever on the transmission using the disassembly tool Nr.21  .

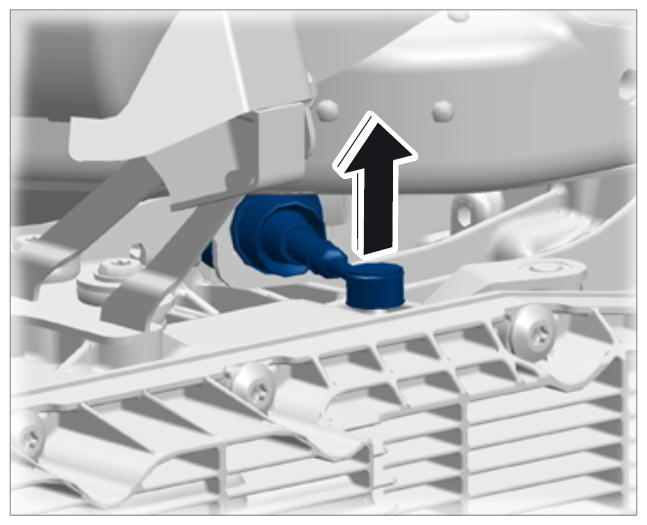

    Fig 6: Removing Parking Lock Cable
    G09806886Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Press fastening part on the locking cable up and pull it backwards out of the support.

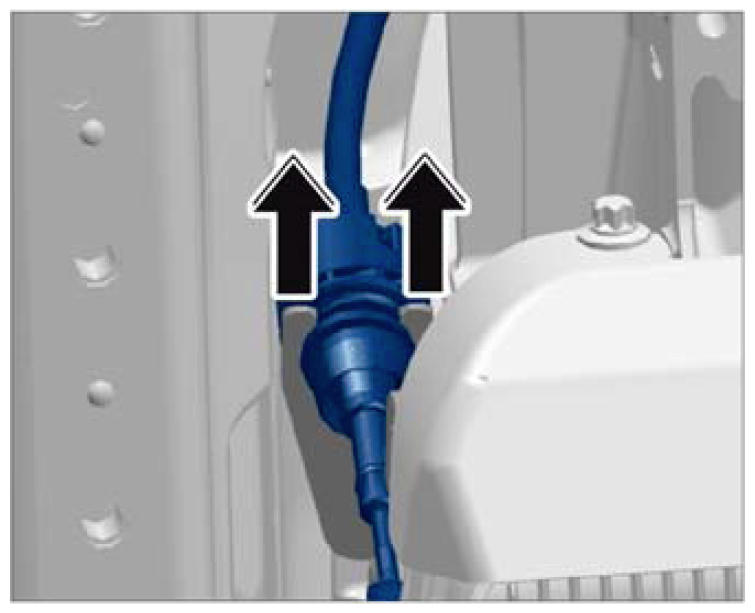

    Fig 7: Removing Parking Lock Cable Support
    G09806887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    The ATF pan must cover the complete surface of the transmission jack.

    If this is not the case, the gap at the ATF pan must be filled with a suitable object (piece of wood).

  10. Support transmission with a transmission jack and secure with a retaining strap.
  11. Unscrew fastening screws from transmission support.

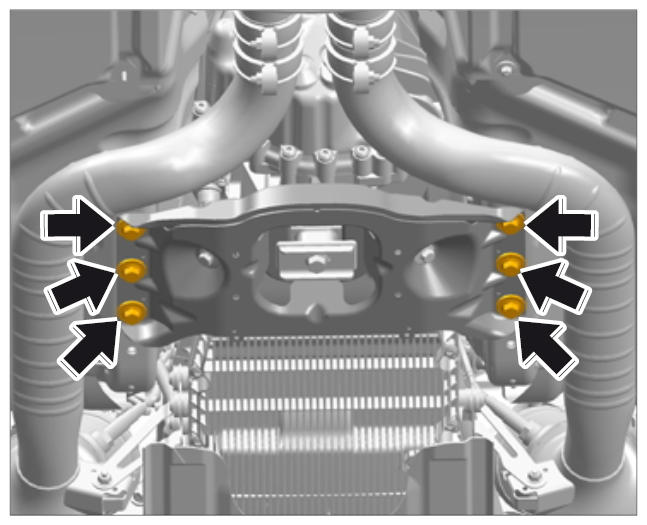

    Fig 8: Locating Fastening Screws On Transmission Mount
    G09806888Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Unscrew fastening screws for securing transmission to engine.

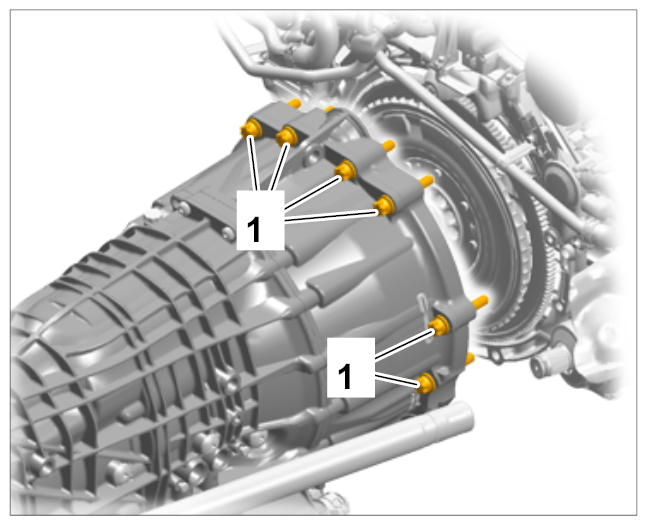

    Fig 9: Identifying Transmission To Engine Fastening Screws
    G09806889Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Remove transmission.
