Installing Porsche Doppelkupplung (PDK)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Coat shaft teeth on the PDK with Longtime 3EP .

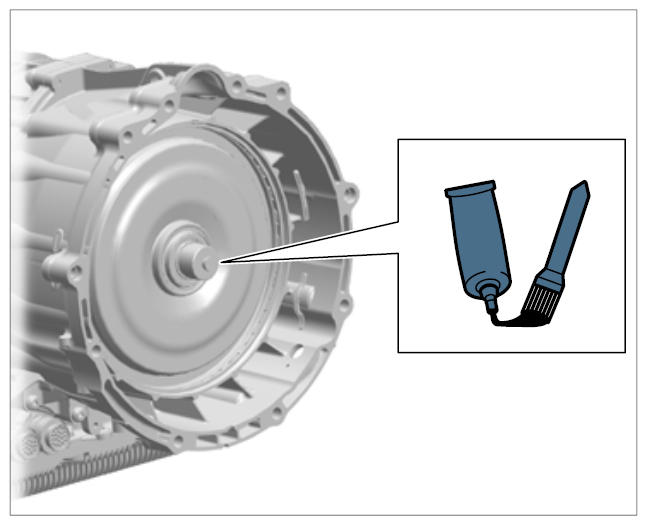

Fig 1: Identifying Greasing Area On Shaft Teeth
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Together with 2WD: Fit transmission with a spacer plate and mount it on the engine by turning the output shaft.

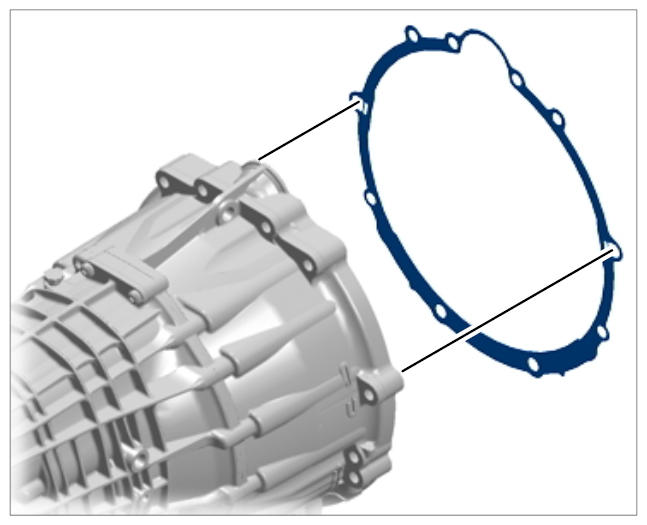

Fig 2: Identifying PDK Spacer Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Together with all-wheel drive: Fit transmission and mount it on the engine by turning the output shaft.
Screw in new fastening screws for securing transmission to engine. Initial tightening 38 Nm (28 ftlb.) Torque angle 90°

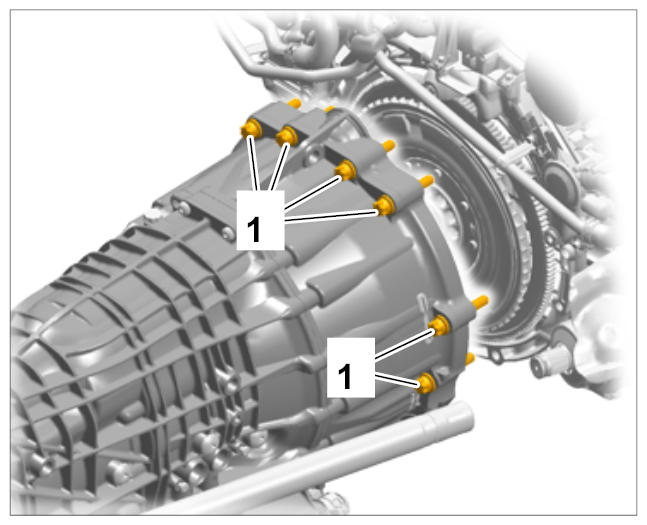

Fig 3: Identifying Transmission To Engine And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws on transmission support. Tightening torque 65 Nm (48 ftlb.)

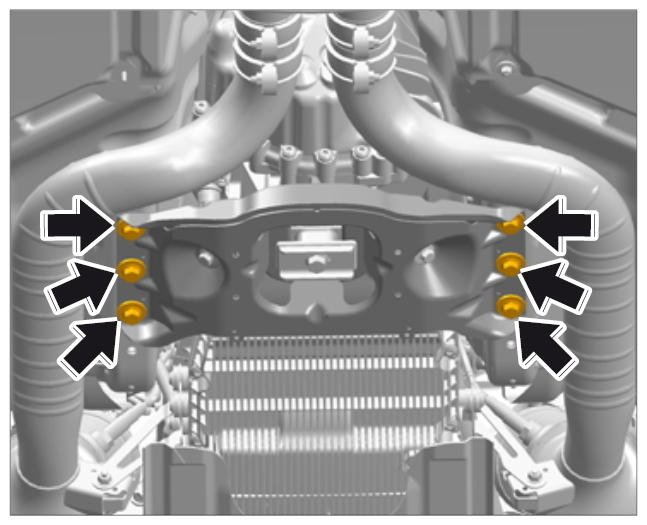

Fig 4: Identifying Fastening Screws On Transmission Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide fastening part for the locking cable into the support on the transmission in direction of travel.

Fig 5: Removing Parking Lock Cable Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press locking cable onto ball joint on transmission.

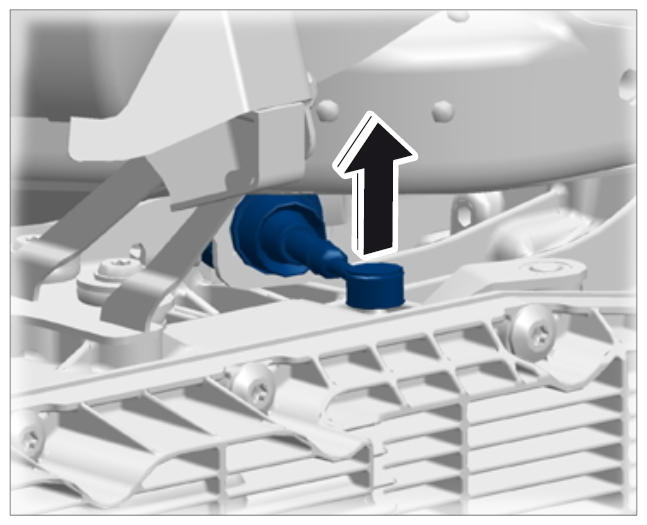

Fig 6: Removing Parking Lock Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Together with all-wheel drive: Replace circlip -1- on input flange on all-wheel final drive.

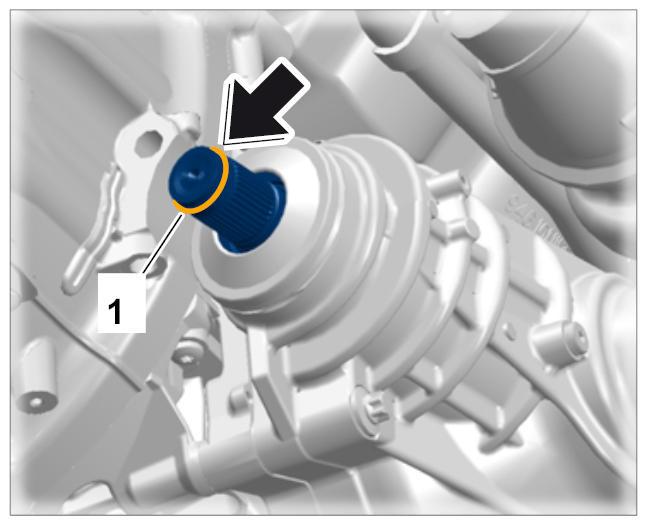

Fig 7: Locating Circlip On All-Wheel Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Together with all-wheel drive: Thinly coat the inner teeth at the end of the connecting shaft with Anti Seize .

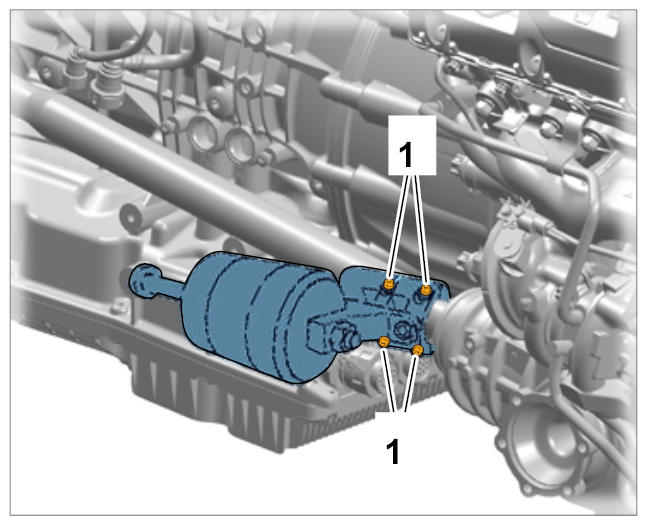

Together with all-wheel drive: Fit the impact puller 9799 using 4 screws -1- to the groove in the connecting shaft.

Fig 8: Identifying Fitting Tool And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Together with all-wheel drive: Attach connecting shaft on all-wheel final drive and fit using the impact puller 9799 until the ring → Fitting tool on the transmission is visible.

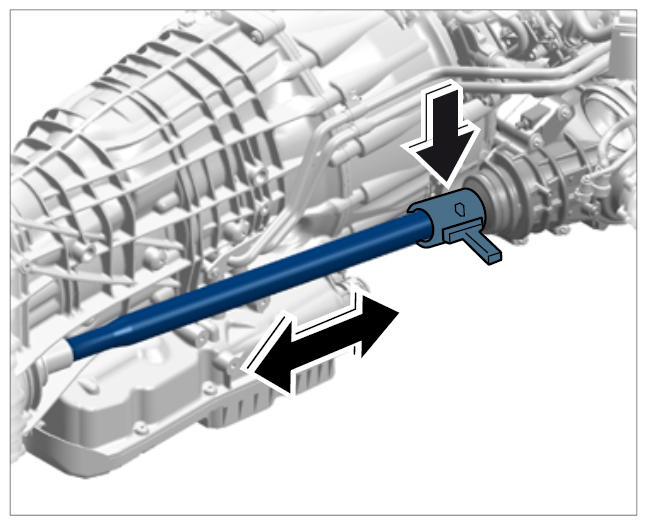

Fig 9: Removing And Fitting Connecting Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove impact puller 9799 .

Fig 10: Identifying Fitting Tool And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Once you have fitted the connecting shaft, check by hand that it is locked correctly.
Replace sealing rings at the ends of the ATF line.

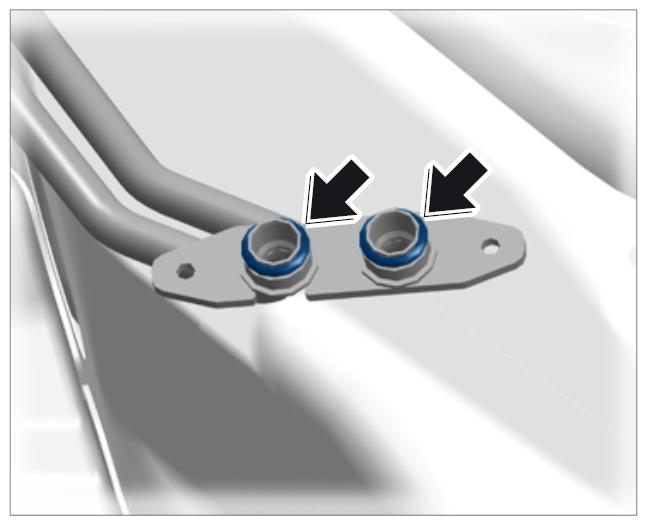

Fig 11: Locating Sealing Rings On ATF Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws securing ATF line to transmission.

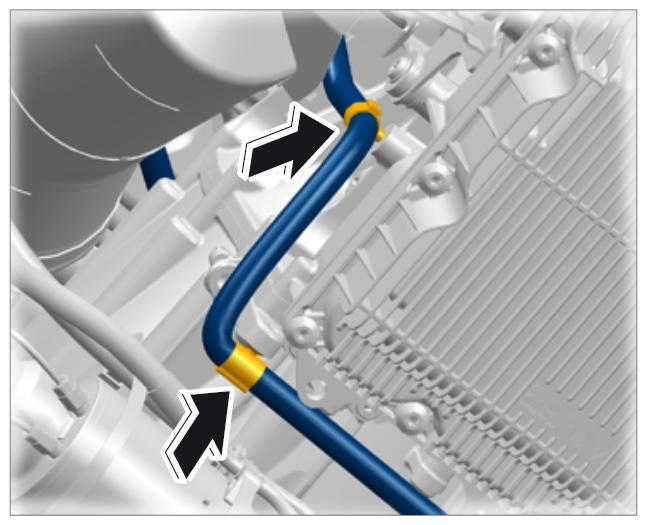

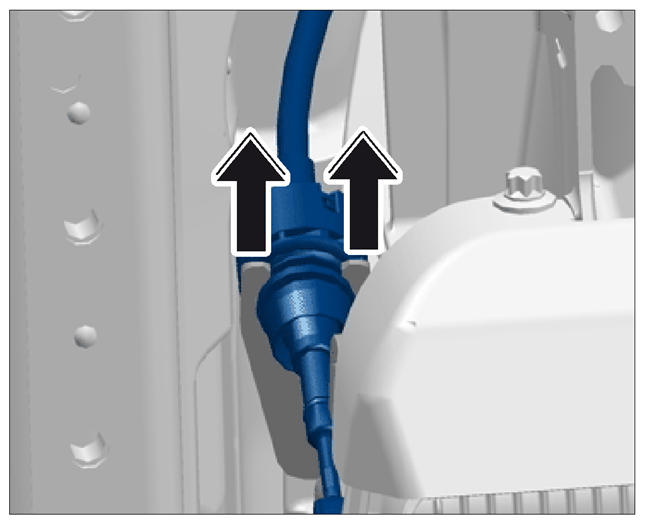

Fig 12: Locating Retaining Clips On PDK Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure connector on the transmission by turning it 1/4 turn to the right.

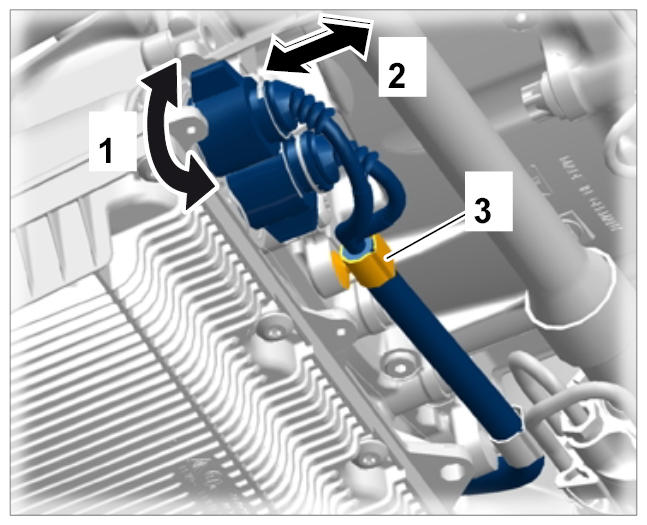

Fig 13: Securing Connectors On PDK Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit heat protection on the transmission.

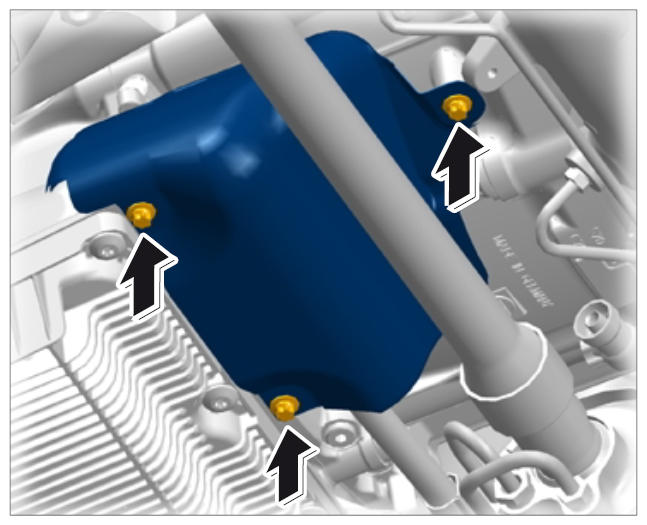

Fig 14: Locating Heat Shield For PDK Wiring Harness And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
