Removing Tiptronic Control Unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

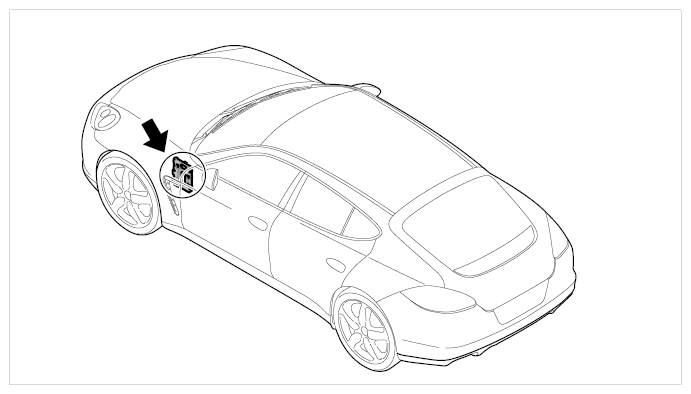

Fig 1: Locating Tiptronic Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Release, open and disengage the retaining bar -a- .

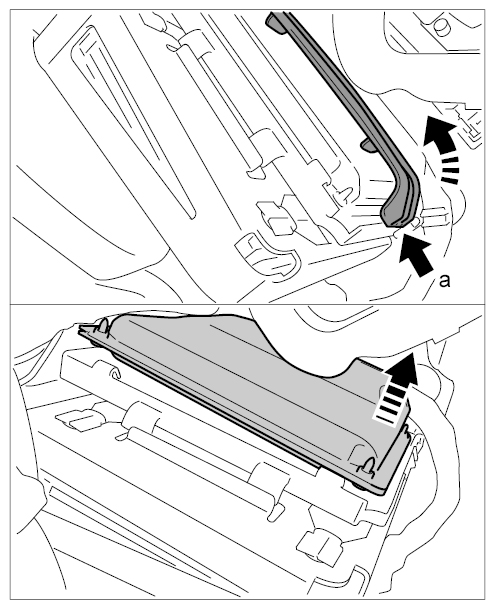

Fig 2: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press locking lugs on the PDK control unit aside and unclip PDK control unit from the holder.
Release -a- , open -A- and pull off -B- the connector.

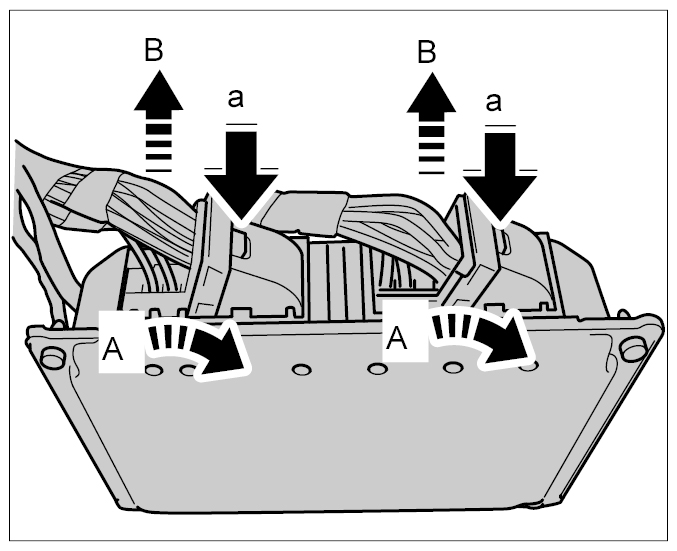

Fig 3: Releasing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
