Disassembling Selector Support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

A new bottom part of the selector support must be used after disassembling the selector support as the fastening screws are screwed into the housing itself.

Unscrew fastening screws for upper part of selector support.

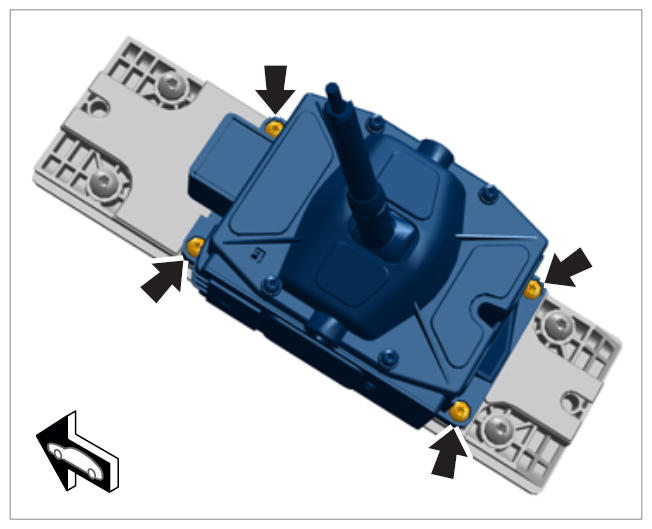

Fig 1: Identifying Mounting For Upper Part Of Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove upper part of selector support and detach driving pin from end of operating cable -arrow- .

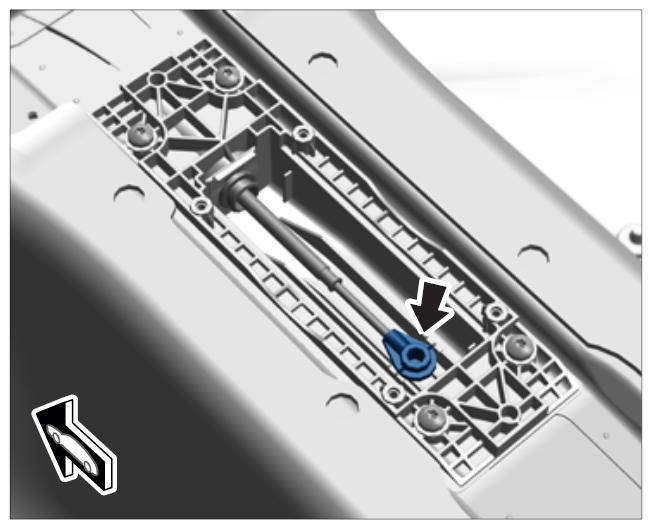

Fig 2: Locating End Of Operating Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tab washer on locking cable.

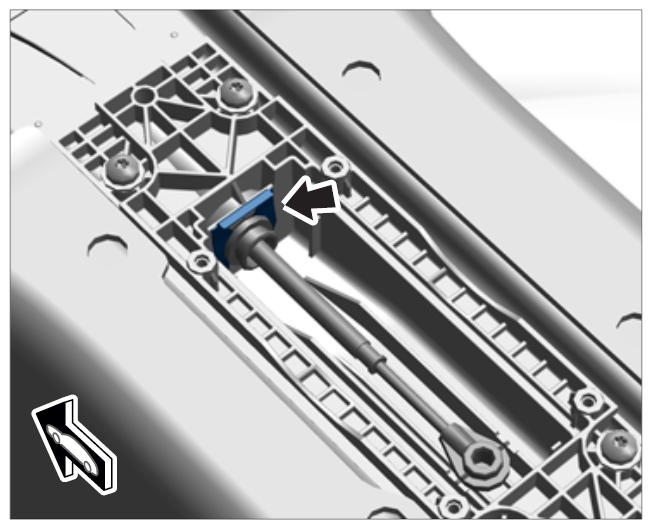

Fig 3: Locating Tab Washer On Locking Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove locking cable.
