Assembling Selector Support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Insert locking cable into the lower part of the selector support.

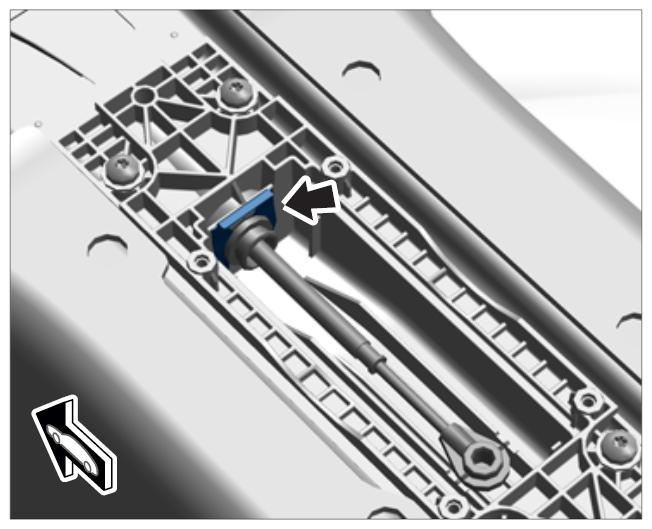

Install tab washer for operating cable.

Fig 1: Locating Tab Washer On Locking Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

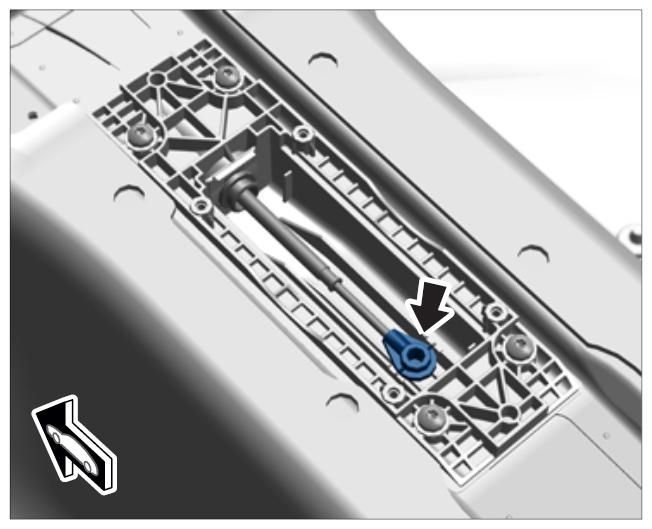

Fit selector support onto the new lower part of selector support. At the same time, insert driver into the end of the operating cable -arrow- .

Fig 2: Locating End Of Operating Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

A new bottom part of the selector support must be used after disassembling the selector support as the fastening screws are screwed into the housing itself.
Screw in fastening screws -arrows- for selector support.

Fig 3: Locating Upper Part Of Selector Support Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

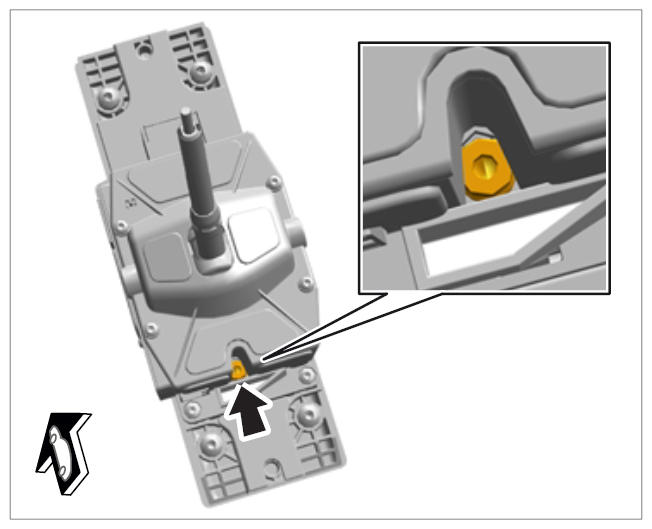

Loosen adjusting screw -arrow- in the selector support by max. one turn.

Fig 4: Locating Adjusting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
