Adjusting Locking Cable: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover under selector knob.

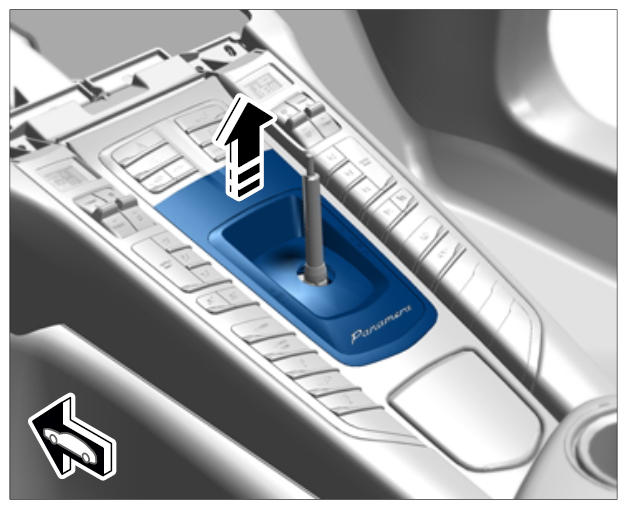

Fig 1: Removing Cover Under Selector Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screw for cable adjustment.

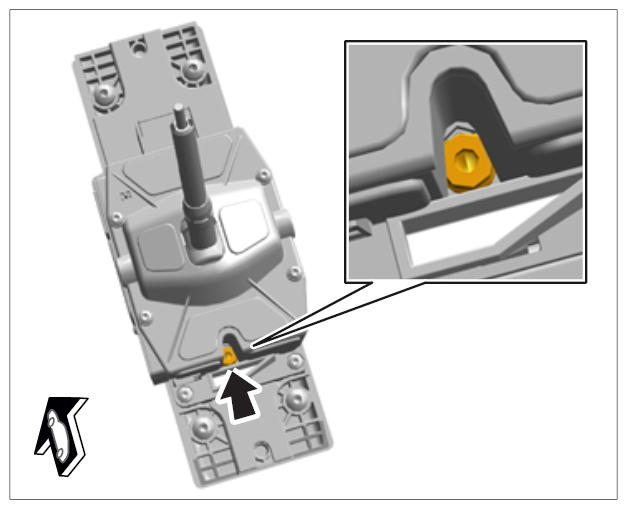

Fig 2: Locating Adjusting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move selector lever to position P. The lever on the transmission must be at the highest position.

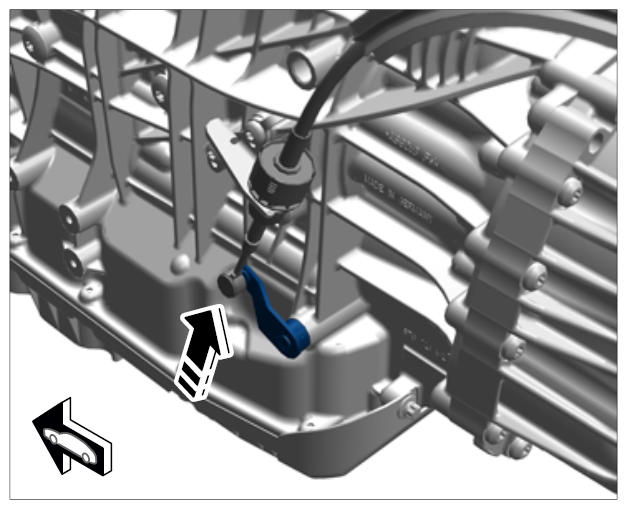

Fig 3: Moving Selector Lever To Position P
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When tightening, the fastening screw must not be pushed in the longitudinal direction.
Tighten fastening screw for cable adjustment.

Fig 4: Locating Adjusting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover under selector knob.

Fig 5: Installing Cover Under Selector Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
