Installing Selector Support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

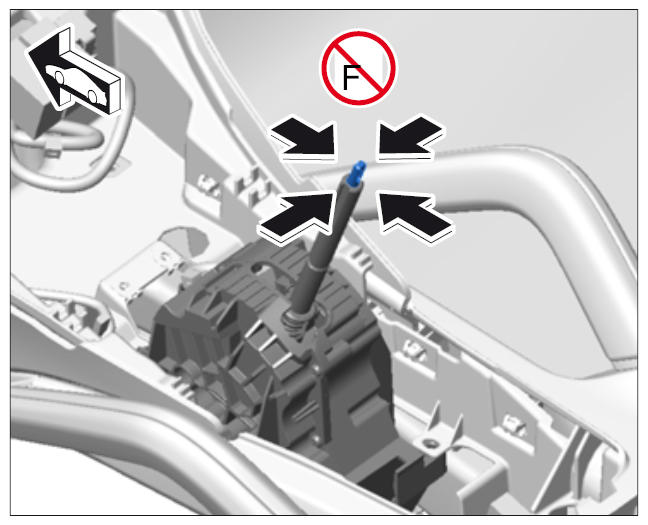

Do not apply lateral forces to the pull rod as it could break off.

Fig 1: Installing Selector Support

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

If the fastening screws -2- on the upper part of the support have to be loosened, the lower part of the support must always be replaced.

Fig 2: Identifying Support Threaded Joint

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install lower part of support:
1. 1.1. Guide selector lever cable into the support and make sure that the grommet is inserted correctly.

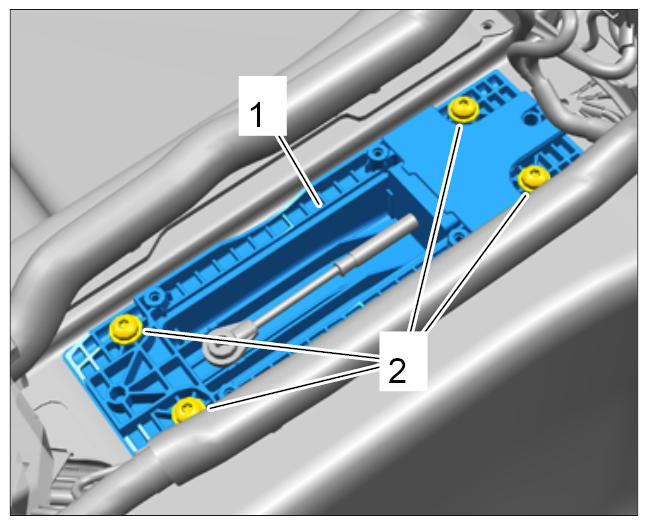

2. 1.2. Insert lower part of support -1- .
3. 1.3. Screw in fastening screws -2- on lower part of support. → Tightening torque: 10 Nm (7.5 ftlb.)

  Fig 3: Fastening Screws For Lower Part Of Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

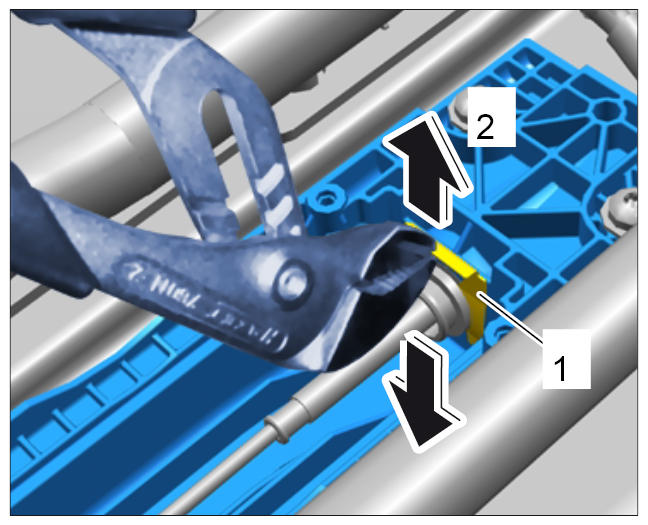

4. 1.4. Fit fastening clamp -1- on the selector lever cable connection -2- .

  Fig 4: Fitting Fastening Clamp
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

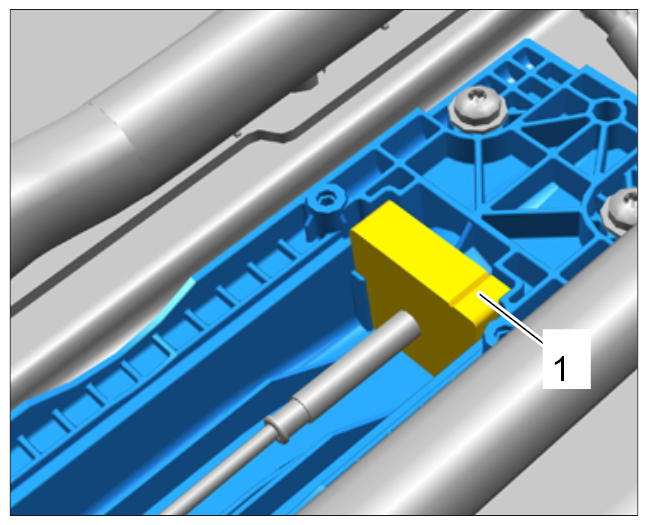

5. 1.5. Insert foam.

  Fig 5: Identifying Foam
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

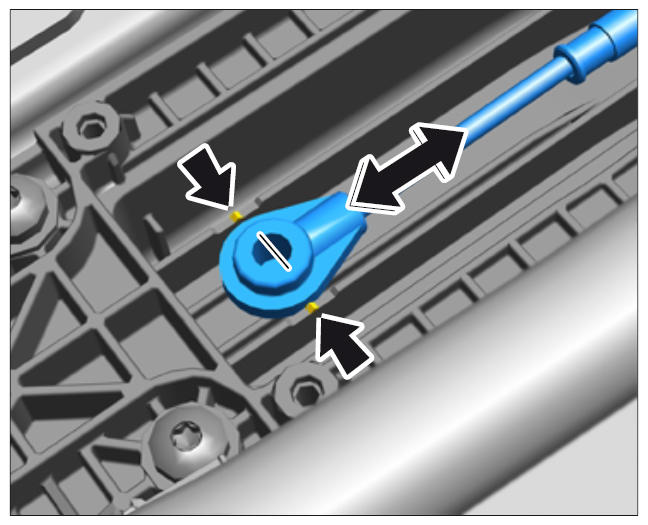

Align selector lever cable. -arrows-

Fig 6: Aligning Selector Lever Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install upper part of support:
1. 3.1. Insert upper part of support.
2. 3.2. Press upper part of support on from above until the ball joint of the upper part of the support engages securely in the socket of the selector lever cable.

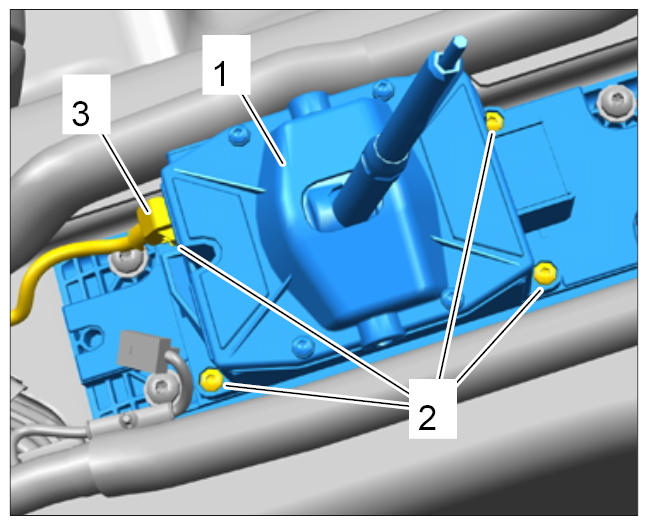

3. 3.3. Screw in fastening screws -2- for the support -1- . → Tightening torque: 3 Nm (2 ftlb.)
4. 3.4. Plug in cable plug -3- .

  Fig 7: Identifying Support Threaded Joint
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
