Changing ATF

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Aligning vehicle for checking oil:

• Align the vehicle horizontally on a measuring platform
• Secure the vehicle to prevent it from rolling away

1. Raise the vehicle on a measuring platform in order to check the oil/make adjustments.
2. Together with air suspension/levelling system: Set the vehicle to "Normal Level" and switch off the levelling system. → 4X00IN LIFTING THE VEHICLE
3. Place a drip pan underneath.
4. Open the oil drain plug -arrow-  and drain oil.

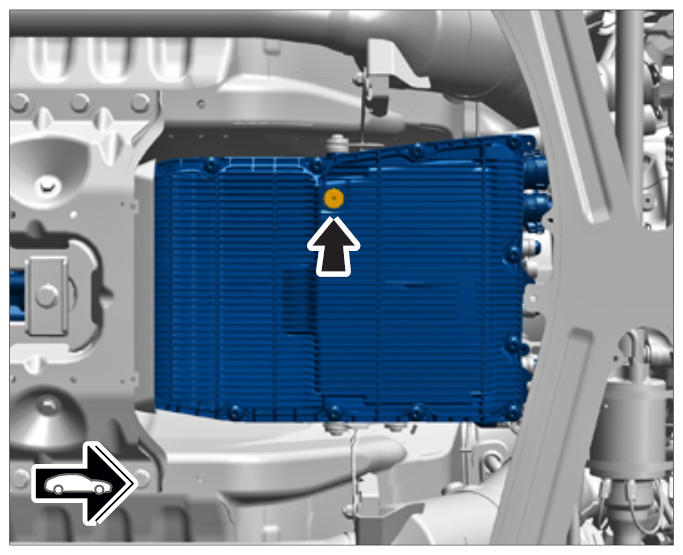

   Fig 1: Locating Oil Drain Plug For PDK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Screw in new oil drain plug.

   Information

   Use only oil approved by Porsche.

6. Open the oil inspection plug -arrow-  and fill in oil using manual metering pump WE 1372  until oil overflows.

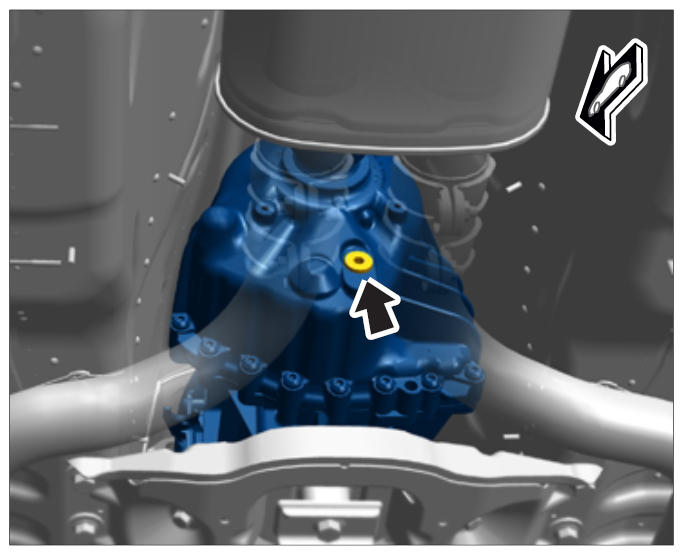

   Fig 2: Locating Oil Inspection Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Screw in oil inspection plug.
8. Start the engine.
   • Press the brake pedal
   • Shift the gear lever slowly through P-R-N-D three times
9. Read out the ATF temperature using PIWIS Tester II 9818  until it has reached the test temperature. Temperature 40°C +5°C

   Menu structure:

   1. 9.1. Select PDK (Porsche Doppelkupplung)  control unit
   2. 9.2. Submenu: Actual values/input signals
   3. 9.3. Submenu: CAN output signals for transmission sump temperature
10. Move selector lever to position P  .
11. Switch off engine and wait for about 2 minutes.
12. Open the oil inspection plug -arrow-  .
13. Fill in oil using manual metering pump WE 1372  until oil overflows.
14. Screw in a new oil inspection plug -arrow-  .
Fig 3: Locating Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
