Checking ATF

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Move selector lever to position P and start the engine.
Place oil collection pan underneath.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information
- For details of the next steps, read the test conditions specified under → 370235 CHECKING AND TOPPING UP ATF
Information
- A certain amount of oil will always be lost after unscrewing the oil inspection plug. The reason for this is that some oil remains on the plug in the lifting tube.
Unscrew oil inspection plug -1- .

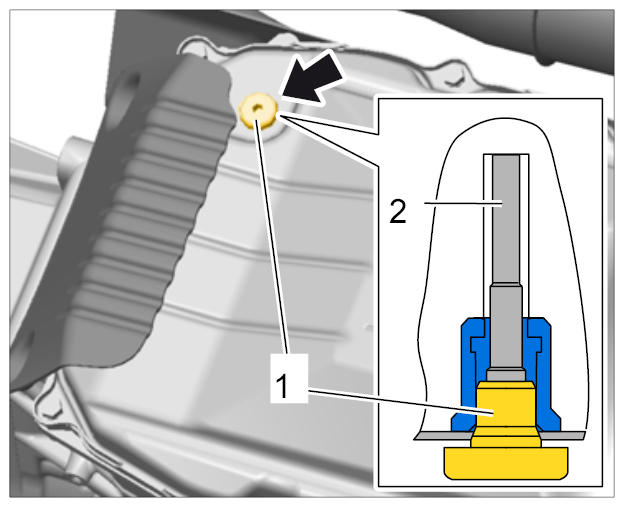

Fig 1: Identifying ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The oil level is correct when ATF is dripping continuously from the lifting tube. If this is not the case, add more ATF. → 370235 CHECKING AND TOPPING UP ATF
Screw in oil inspection plug -1- with a new seal. → Tightening torque: 16 Nm (12 ftlb.)+/-1 Nm (+/-0.5 ftlb.)

Fig 2: Identifying ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
