Topping Up ATF
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information
Aligning vehicle for checking oil:
- Align the vehicle horizontally on a measuring platform
- Secure the vehicle to prevent it from rolling away
- Raise the vehicle on a measuring platform in order to check the oil/make adjustments.
- Together with air suspension/levelling system: Set the vehicle to "Normal Level" and switch off the levelling system. → 4X00IN LIFTING THE VEHICLE
- Start the engine.
- Press the brake pedal
- Shift the gear lever slowly through P-R-N-D three times
- Read out the ATF temperature using PIWIS Tester II 9818
until it has reached the test temperature.
Menu structure:
- 4.1. Select PDK (Porsche Doppelkupplung) control unit
- 4.2. Submenu: Actual values/input signals
- 4.3. Submenu: CAN output signals for transmission sump temperature
- Move selector lever to position P .
- Switch off engine and wait for about 2 minutes.WARNING: Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
Use only oil approved by Porsche.

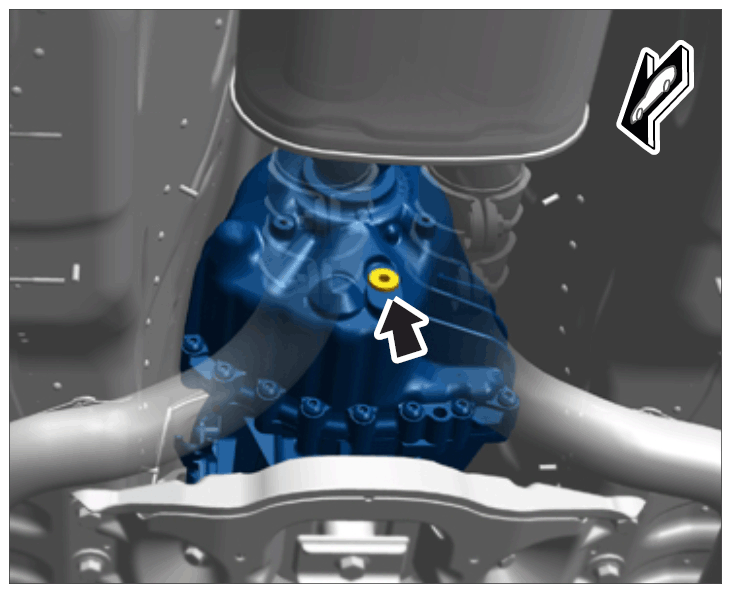

- Open the oil inspection plug -arrow- and fill in oil using manual metering pump WE 1372 until oil overflows.
- Screw in a new oil inspection plug.
