Connecting And Disconnecting Battery

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Static battery charge

Battery can explode
Electrical discharges

→ Do not rub the battery with a dry cloth.

Information

Switch off all loads and remove the ignition key.

Do not disconnect the battery while the engine is running.
Disconnect and reconnect battery with extreme caution.
Do not rub the battery with a dry cloth.

Information

The battery is located in the luggage compartment under the storage floor.

Open the luggage compartment floor.
Remove tool kit tray.
Disconnect ground strap on the battery:
Risk of short circuit! Disconnect the negative cable -1- on the battery.

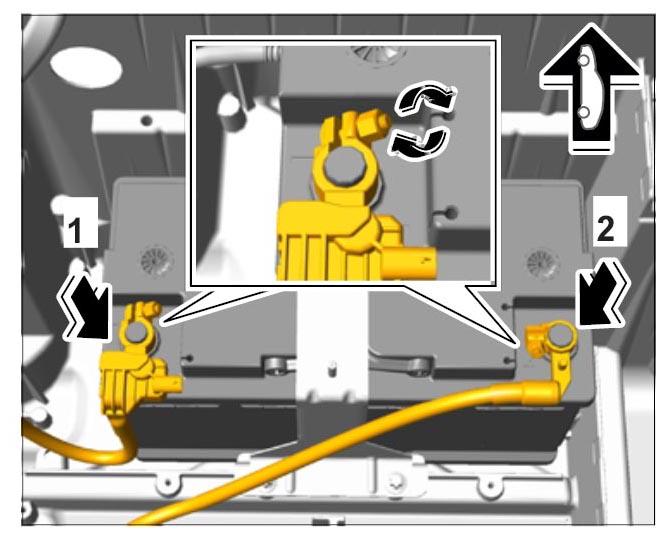

Fig 1: Removing Terminal Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route or isolate the ground strap so that all contact with a ground carrier (e.g. body, battery terminal) is avoided.

Connect the battery

6.1. Connect the negative cable -1- to the battery terminal and secure it with the fastening nut.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Terminal clamp to battery	-1-	Tightening torque	6 Nm (4.5 ftlb.)

Fig 2: Attaching Terminal Clamps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The rear lid must be closed manually on vehicles with a Power Lift Gate (electric rear lid). Then open the rear lid with the tip switch. The rear lid must open electrically.
Insert tool kit tray and fold down the luggage compartment tray.
