Group 27: Battery

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

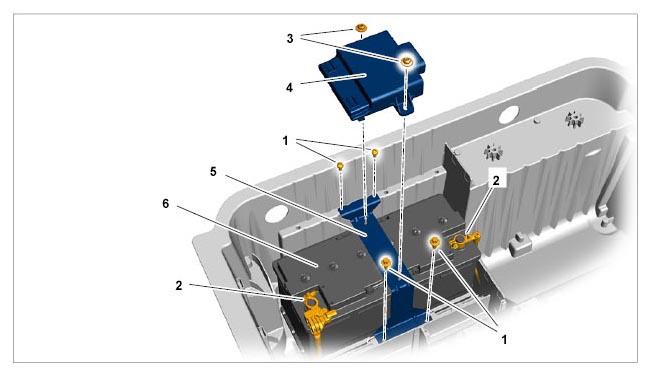

Fig 1: Exploded View Of Battery
G09805257Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fastening screws on battery holder
  2. Terminal clamps on battery
  3. Fastening nuts for DC/DC converter
  4. DC/DC converter
  5. Battery holder
  6. Battery
Location Description Type Basic value Tolerance 1 Tolerance 2
Terminal clamp on battery   Tightening torque 6 Nm (4.5 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)
Ground strap to ground point   Tightening torque 9.7 Nm (7.5 ftlb.)
Fastening screws securing retaining bar to battery rail   Tightening torque 10 Nm (7.5 ftlb.)
Fastening screws securing retaining bar to battery box   Tightening torque 23 Nm (17 ftlb.)
