Tightening Specifications For Exhaust Manifold/Turbocharger

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

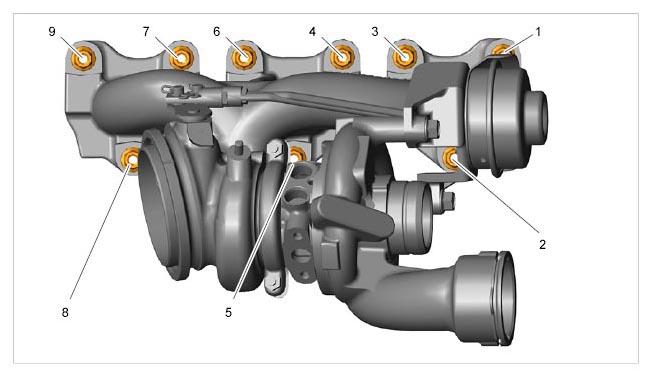

Fig 1: Exhaust Manifold/Turbocharger Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1-9 - Nut, M8 Initial tightening: → Initial tightening: 20 Nm (15 ftlb.)
1-9 - Nut, M8 Final tightening: → Final tightening: 27 Nm (20 ftlb.)

Tightening sequence 1 to 9 for both cylinder banks - always starting at the timing-case cover!
