Intake Noise Generator

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

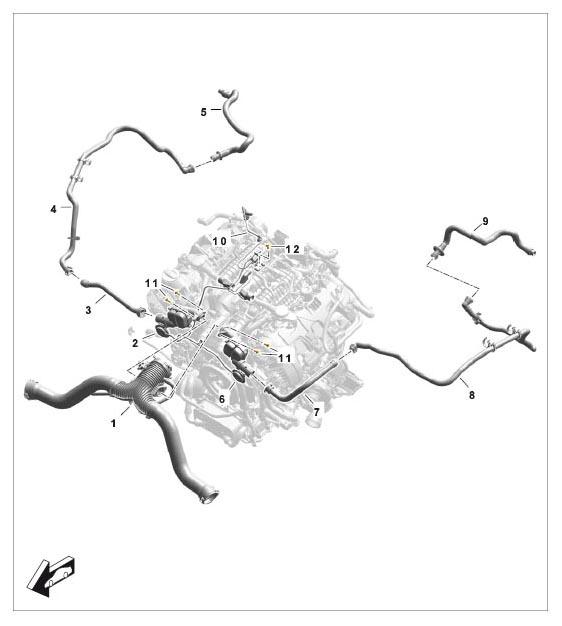

Fig 1: Identifying Intake Noise Generator Components
G09805256Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Throttle body
  2. Intake noise generator
  3. Line at front right
  4. Line at center right
  5. Line at rear right
  6. Intake noise generator
  7. Line at front left
  8. Line at center left
  9. Line at rear left
  10. Vacuum line
  11. Screw → Tightening torque: 25 Nm (19 ftlb.)
  12. Screw → Tightening torque: 0 Nm (0 ftlb.)
