High-pressure Pump With High-Pressure Lines
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

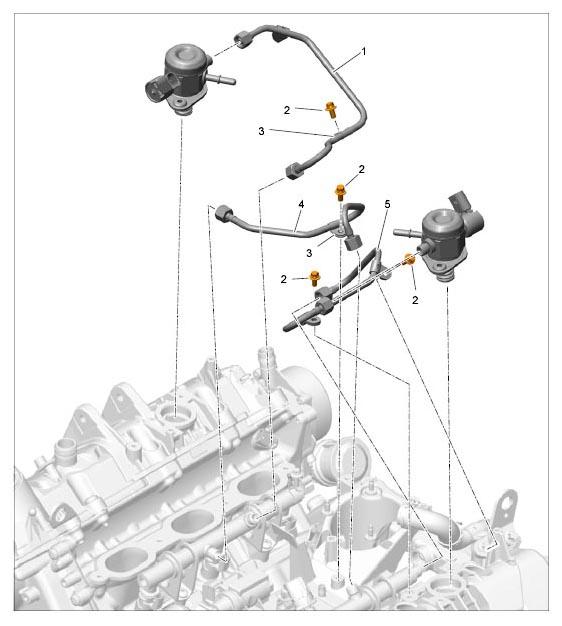

- High-pressure line, cylinders 1-3
- Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
- Clamp
- High-pressure connecting line
- High-pressure line, cylinders 4-6
Tightening specifications for fuel lines to high-pressure pump and fuel gallery:
- Fit union nuts hand-tight.
- Screw in and align holder/clamp.
- Tighten union nuts to → Initial tightening: 20 Nm (15 ftlb.) .
- Tighten holder/clamp to → Tightening torque: 10 Nm (7.5 ftlb.) .
- Tighten union nuts to → Final tightening: +35 Nm (+26 ftlb.) until secure.
