Technical Values -70- Linings

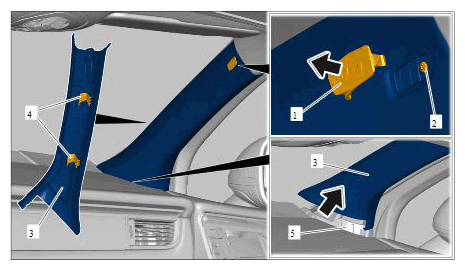

A-pillar trim panel
2 - Screw → Tightening torque: 5.6 Nm (4 ftlb.)
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

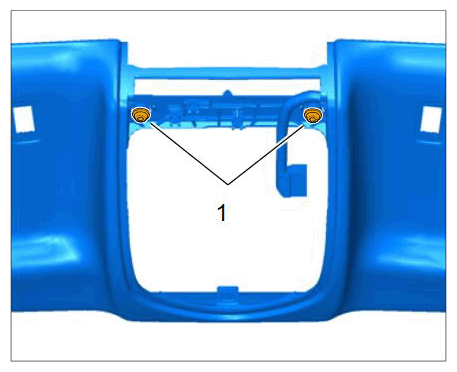

| Fastening screw for lower roof console | Tightening torque | 5 Nm (3.5 ftlb.) | |||
|
Screws securing roof console to headliner |
|||||

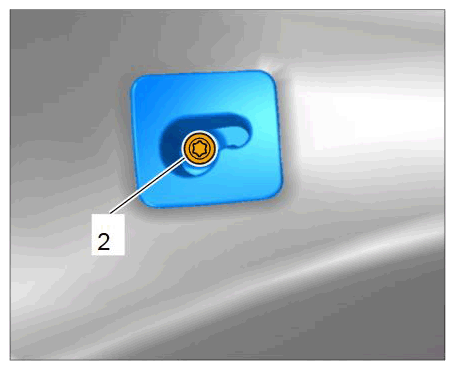

| Fastening screw for luggage net cover holder | Tightening torque | 9 Nm (6.5 ftlb.) | |||
|
Screws securing holder for rear luggage net cover |
|||||
