Removing Battery-Starter Wire Harness (From External Power Connection To Starter)

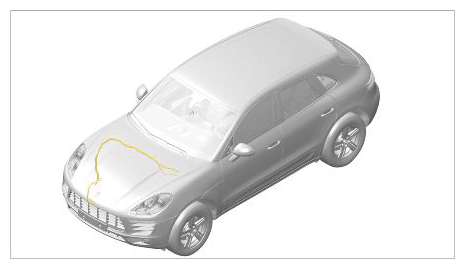

Installation position of wire harness for battery wiring (from external power connection to fan)

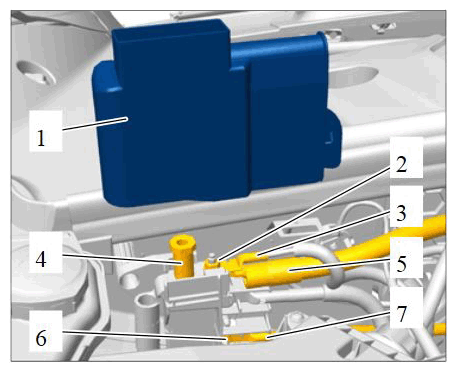

1. Disconnect positive cables at the jump-start point.
   1. 1.1. Remove cover -1-  at the jump-start point.
   2. 1.2. Screw off fastening nut -2-  and remove positive cable -3-  from positive cable (B+) -5-  .
   3. 1.3. Unscrew connection terminal -4-  at the jump-start point and remove positive cable (B+) at the jumpstart point.
   4. 1.4. Unscrew fastening nut -6-  for positive cable -7-  at the jump-start point.

      Disconnecting positive cables at the jump-start point

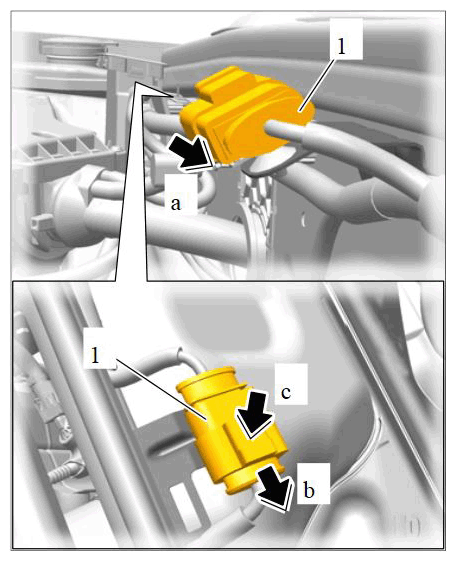

2. Disconnect electric plug connection -1-  .
   1. 2.1. Disengage electric plug connection -a-  and push it down towards the rear and off the retaining clip.
   2. 2.2. Pull red locking mechanism -b-  .
   3. 2.3. Pull secondary lock -c-  and disconnect electric plug connection.

      Disconnecting electric plug connection

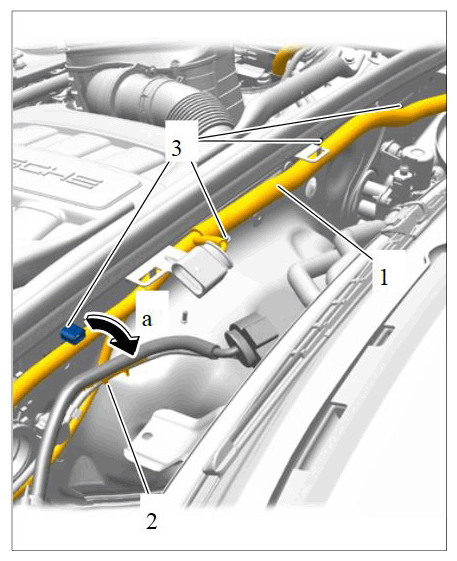

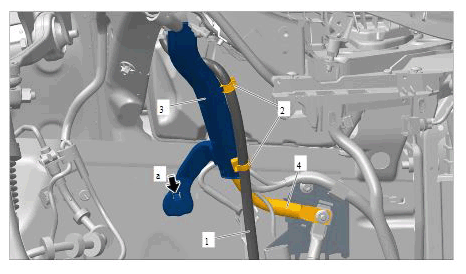

3. Disconnect battery-starter wire harness -1-  on the cowl panel.
   1. 3.1. Unclip the holder -2-  at the battery-starter wire harness holder -a-  .
   2. 3.2. Unclip the holders -3-  for the battery-starter wire harness on the cowl panel.

      Disconnecting battery-starter wire harness on cowl panel

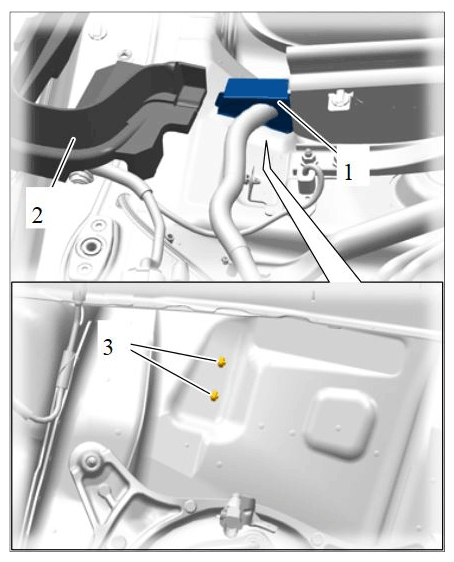

4. Loosen wire harness sleeve -1-  on the cowl panel.
   1. 4.1. Carefully move seal -2-  to the side.
   2. 4.2. Unclip the holders -3-  for the wire harness sleeve in the wheel housing at the top right.

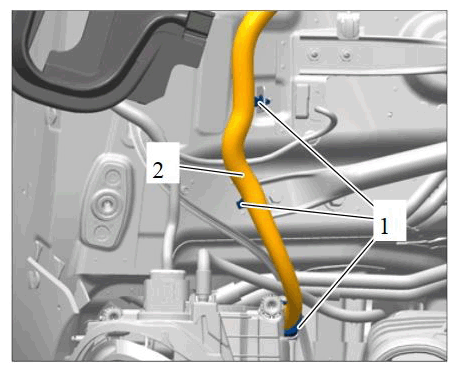

5. Unclip the holders -1-  for the battery-starter wire harness -2-  on the body.

   Disconnecting battery-starter wire harness

   NOTE:

   One or two electric plug connections for the fans must be disconnected, depending on the engine type.

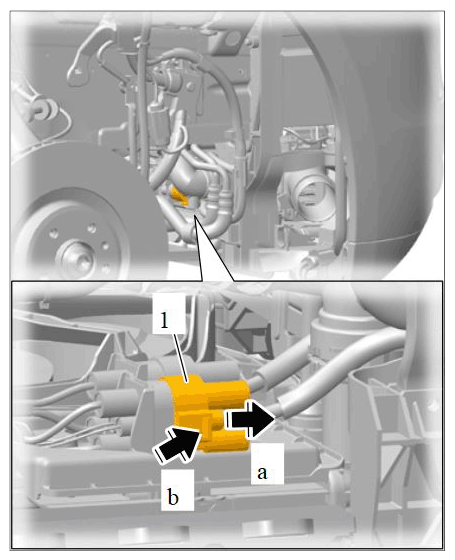

6. Disconnect electric plug connection -1-  .
   1. 6.1. Pull red locking mechanism -a-  .
   2. 6.2. Press secondary lock -b-  and disconnect electric plug connection.

      Disconnecting electric plug connection for fan

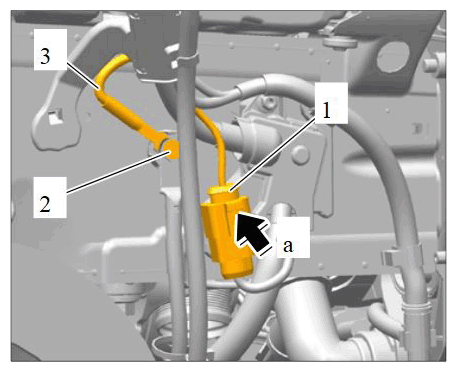

7. Release electric plug connection -1-  (-a-  ) and disconnect it.
8. Screw off fastening nut -2-  and remove ground line -3-.

   Disconnecting electric plug connection and ground line

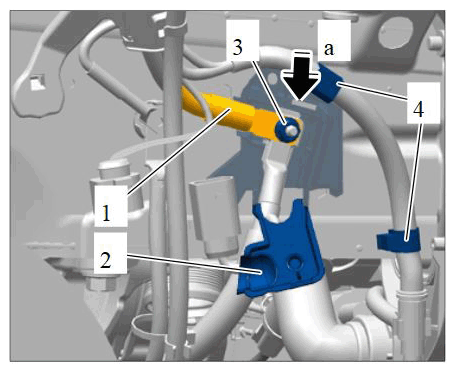

9. Disconnect battery-starter wire harness -1-  at the potential distributor.
   1. 9.1. Release cover -2-  on the potential distributor and fold it down.
   2. 9.2. Screw off fastening nut -3-  and remove B+ positive cable from the potential distributor.
   3. 9.3. Open the holders -4-  and remove battery-starter wire harness.

      Disconnecting battery-starter wire harness at the potential distributor

10. Unclip breather hose -1-  from the holders -2-  for the wiring duct -3-.
11. Release wiring duct -a-  and pull it up out of the longitudinal member.
12. Remove battery-starter wire harness -4-  in a downward direction.

    Disconnecting battery-starter wire harness
