Loosening Main Wire Harness In Luggage Compartment At The Left

→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.

→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.

→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

→ Observe the requirements for working with and installing optical waveguides.

• Always wear approved work clothes and shoes when carrying out assembly work  .
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation  .
• Do not touch electric pins and plug contacts  .

1. Take tyre sealing compound and compressor out of the storage tray.

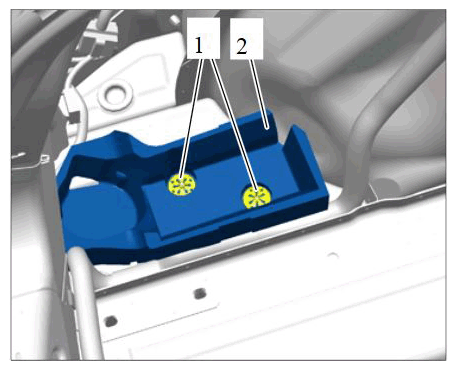

2. Screw off fastening nuts -1-  and remove storage tray -2-  .

   Removing storage tray

3. Release and disconnect electric plug connection on KESSY antenna at the rear. → 966719 REMOVING AND INSTALLING KESSY ANTENNA

   Vehicles with sports exhaust system

4. Release and disconnect electric plug connections on servo motors for exhaust flap control at the left and right. → 263355 REPLACING REAR SILENCER
5. Press grommet for electric line for the servo motor for exhaust flap control at the left into the passenger compartment.

   All vehicles

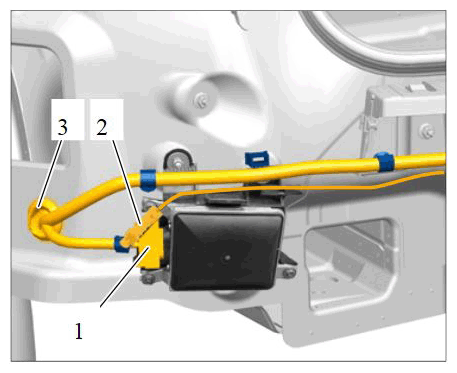

6. Release and disconnect electric plug connections -1-  on control unit for Lane Change Assist. → 917019 REMOVING AND INSTALLING CONTROL UNIT FOR LANE CHANGE ASSIST
7. Unclip, release and pull off antenna line -2-  .
8. Press grommet -3- into the passenger compartment.

   Disconnecting antenna line

9. Unclip main wire harness - rear-end connection - from all holders and carefully guide it into the luggage compartment.

   Vehicles with air suspension

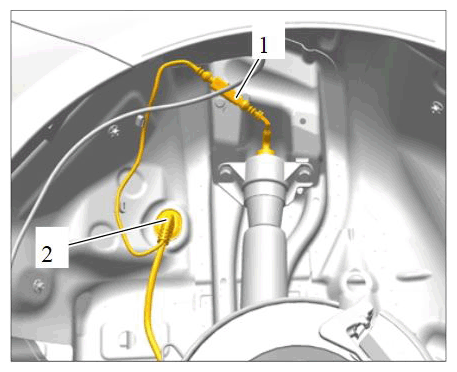

10. Release and disconnect electric plug connection -1-  on the rear left spring strut.

    All vehicles

11. Press grommet -2-  into the luggage compartment.

    Disconnect electric plug connection for shock absorber at the rear left (shown on right side of vehicle)

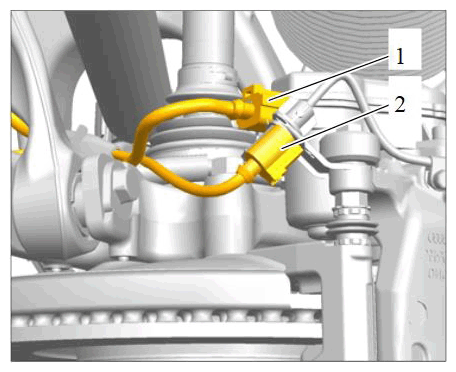

12. Release and disconnect electric plug connection -1-  on the parking brake actuator.
13. Release and disconnect electric plug connection -2-  on the brake pad wear contact.

    Disconnecting electric plug connection for brake pad wear contact and parking brake actuator (right side of vehicle shown)

14. Release and disconnect electric plug connection on the rear left speed sensor. → 451555 REPLACING REAR SPEED SENSOR
15. Release and disconnect electric plug connection on the rear left level sensor, if fitted. → 431955 REPLACING REAR LEVEL SENSOR
16. Release and disconnect electric plug connection on control unit for tyre pressure monitoring system. → 443419 REMOVING AND INSTALLING TPM CONTROL UNIT
17. Unclip main wire harness - connection for rear left wheel housing - from all holders and carefully guide it into the luggage compartment.

    Vehicles with rear-differential lock

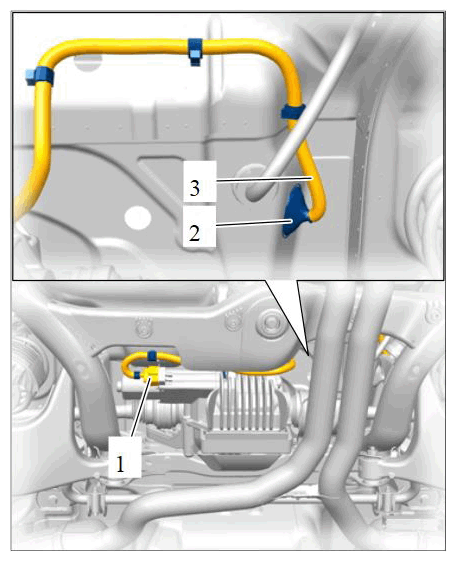

18. Release and disconnect electric plug connection -1-  on servo motor for rear-differential lock.
19. Unclip electric line -3- for servo motor for rear-differential lock from all holders.
20. Press grommet -2-  into the luggage compartment and carefully guide main wire harness - sub-part for rear-differential lock - into the luggage compartment.

    Disconnecting electric line for servo motor for rear-differential lock

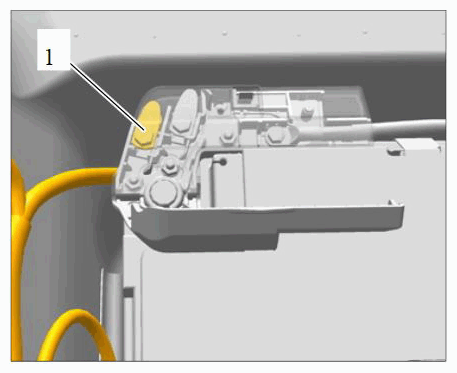

21. Remove positive cable -1-  on power distributor. → 978919 REMOVING AND INSTALLING POWER DISTRIBUTOR

    Disconnecting positive cable on power distributor

22. Unclip main wire harness - sub-part for rear-differential lock - on luggage compartment floor at the center from all holders.

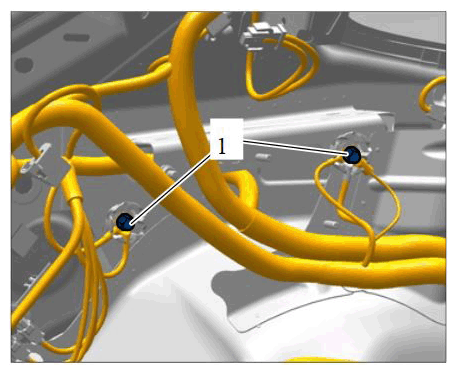

23. Screw off fastening nuts -1-  and remove ground lines from ground points.

    Disconnecting ground lines from ground points

24. Release and disconnect electric plug connection on the rear left seat-belt pretensioner.
25. Release and disconnect electric plug connection on the left head airbag unit. → 696619 REMOVING AND INSTALLING HEAD AIRBAG UNIT

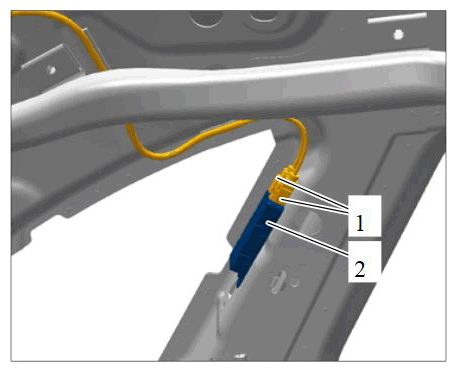

26. Release and pull off antenna lines -1-  on the left antenna amplifier -2-  .

    Disconnecting antenna line on left antenna amplifier

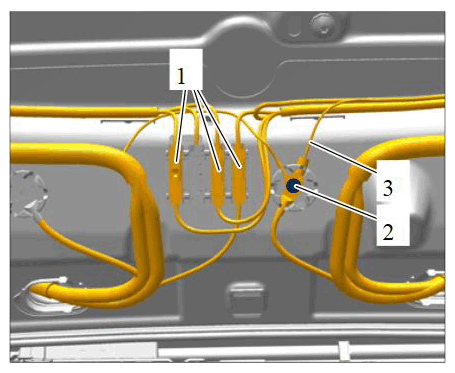

27. Unclip, release and disconnect antenna lines -1-  on the rear roof pillar at the center.
28. Screw off fastening nut -2-  and remove ground line -3- from ground points.

    Disconnecting antenna lines and ground line on rear roof pillar at the center

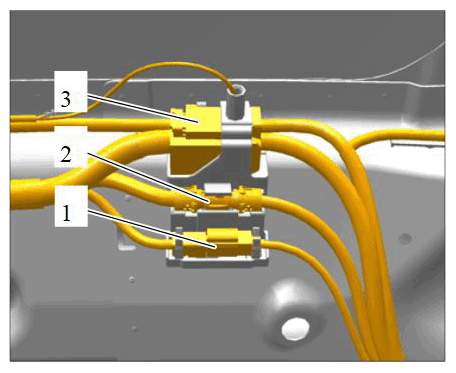

29. Unclip, release and disconnect antenna line -1-  on the rear left roof pillar.
30. Unclip, release and disconnect spray water hose -2-  .
31. Release and disconnect electric plug connection -3- and unclip it from the holder.

    Disconnecting antenna line, spray water hose and electric plug connection on the rear left roof pillar

32. Unclip main wire harness in luggage compartment at the left from all holders.
