Removing tailgate trim panel

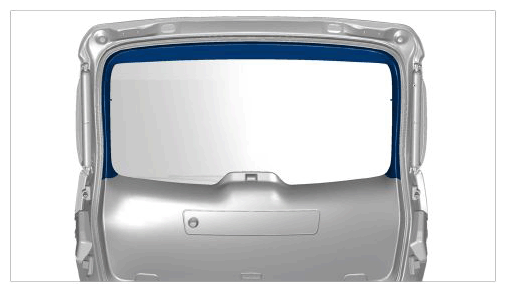

G11981796

Installation position of tailgate trim panel

  1. Cut tie-wrap -1-  and remove it.

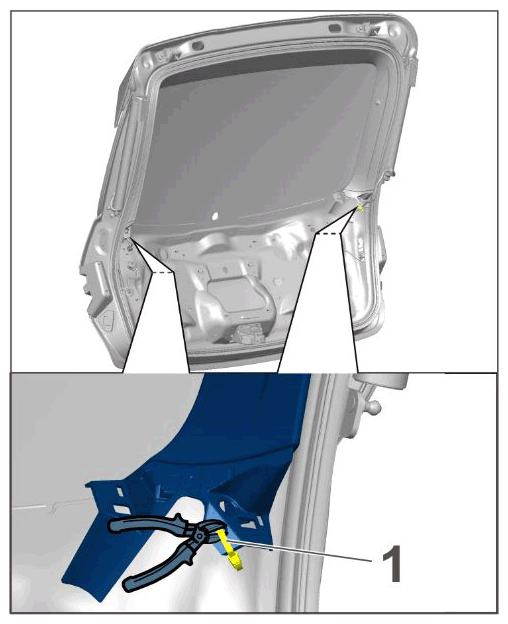

    G11981797

    Removing tie-wraps

  2. Unscrew and remove fastening screws -1-  at the left and right.

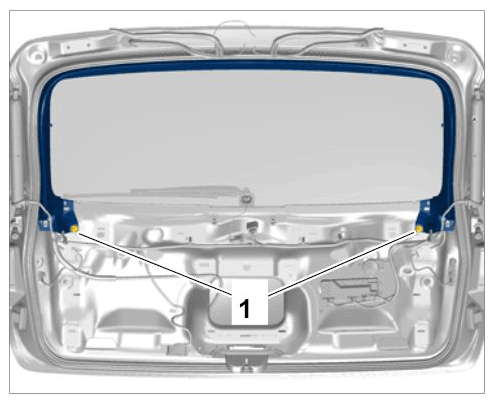

    G11981798

    Trim panel mounting

  3. Carefully unclip trim panel at the positions shown -arrow-  using a suitable tool.

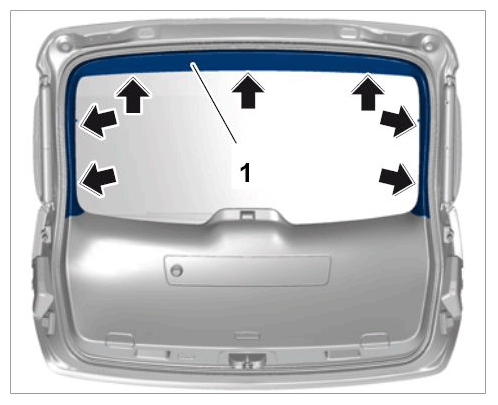

    G11981799

    Unclipping trim panel

  4. Remove trim panel.
