Installing tailgate trim panel

NOTE:

Check that the fixing clips are not bent or broken.

Replace missing or damaged fixing clips with new ones.

Make sure that all fastening clips have engaged correctly.

Check that they are fitted correctly.

  1. Guide tie-wrap -1-  through the cut-out -2-  .

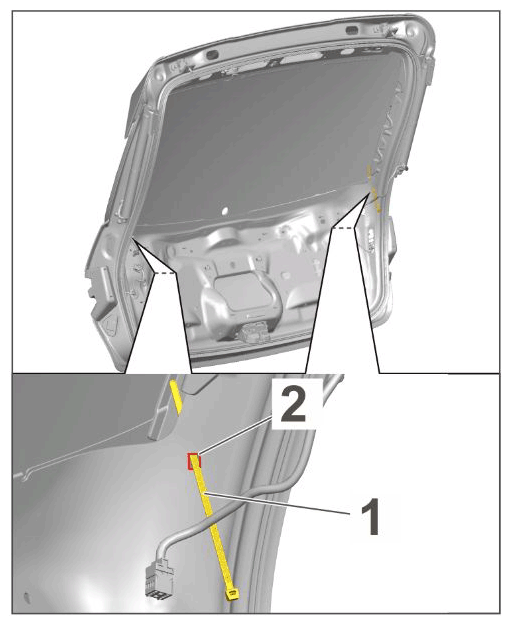

    G11981800

    Positioning tie-wrap

  2. Installation is performed in reverse order to removal.
