Removing upper part of B-pillar trim panel

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Set height adjustment -1-  to the lowest position.
  2. Remove seat belt mount at the front seat. → 691119 REMOVING AND INSTALLING FRONT THREE-POINT BELT
  3. Disengage trim panel -2-  from the fixing clips in the lower area.
  4. Guide belt strap and belt latch out through the trim panel -2-  .
  5. Guide out tabs -3-  in direction of arrow and remove trim panel -2-  .

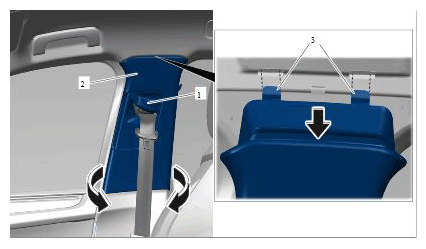

G11981752

Removing upper B-pillar trim panel
