Removing lower part of B-pillar trim panel

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Unclip front inner door sill trim in the rear area at the body.
  2. Unclip trim panel -1-  in the upper area on the B-pillar.
  3. Unclip and remove trim panel -1-  at the bottom at the side member.

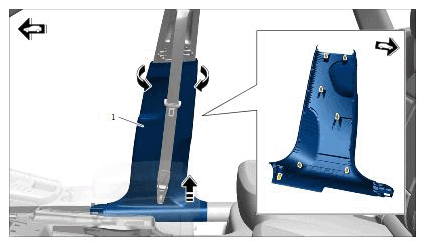

    G11981751

    Lower part of B-pillar trim panel
